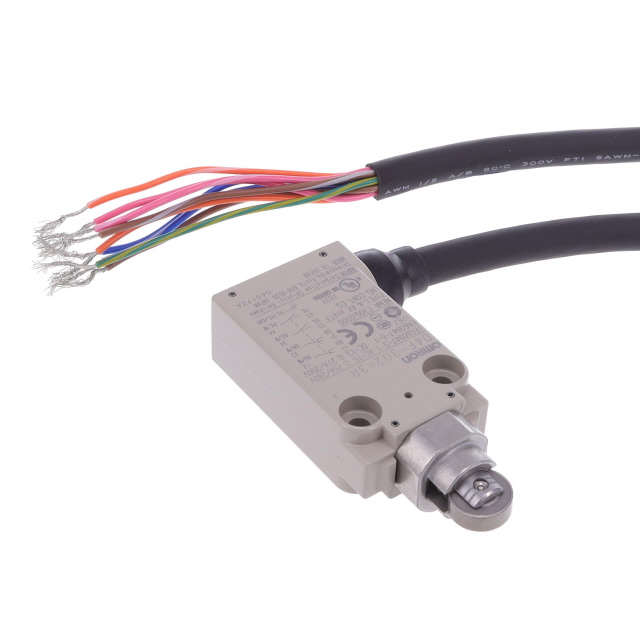

Limit Switches D4F-302-3R product image

D4F-302-3R

$182.34

Description：SWITCH SNAP ACTION 4PST 15A 120V
Series：D4F
Mfr：Omron Automation and Safety
Package：Bulk

SKU:f82eb6233936 Category: Limit Switches Brand: Omron Automation and Safety

ChipApex WhatsApp

Consult the customer manager about the wholesale price.

consultation hotline：86-132-6715-2157

email：[email protected]
Contact the product manager for consultation. One-stop consultation is available.

Do you want a lower wholesale price? Please send us your inquiry and we will reply immediately.

Product introduction

D4F-302-3R is listed in the Limit Switches range at ChipApex. The manufacturer field lists Omron Automation and Safety. Its product description is SWITCH SNAP ACTION 4PST 15A 120V. Review the specifications below when checking this part for your BOM.

Limit Switches specifications for D4F-302-3R

Description：SWITCH SNAP ACTION 4PST 15A 120V
Series：D4F
Mfr：Omron Automation and Safety
Package：Bulk
Circuit：4PST-2NO/2NC
Switch Function：On-Mom, Off-Mom
Current Rating (Amps)：15A (AC), 550mA (DC)
Voltage Rating - AC：120 V
Actuator Type：Roller Plunger
Mounting Type：Chassis Mount
Termination Style：Cable Leads
Ingress Protection：IP67 - Dust Tight, Waterproof
Features：Cable Length 3m
Operating Force：1224gf
Release Force：153gf
Operating Position：1.156" (29.4mm)
Pretravel：0.047" (1.2mm)
Differential Travel：-
Overtravel：0.125" (3.2mm)
Operating Temperature：-30°C ~ 70°C
Voltage Rating - DC：125 V

Limit Switches datasheet and documents for D4F-302-3R

D4F-302-3R
