DASUTWC500NF

Antennas RF Overview

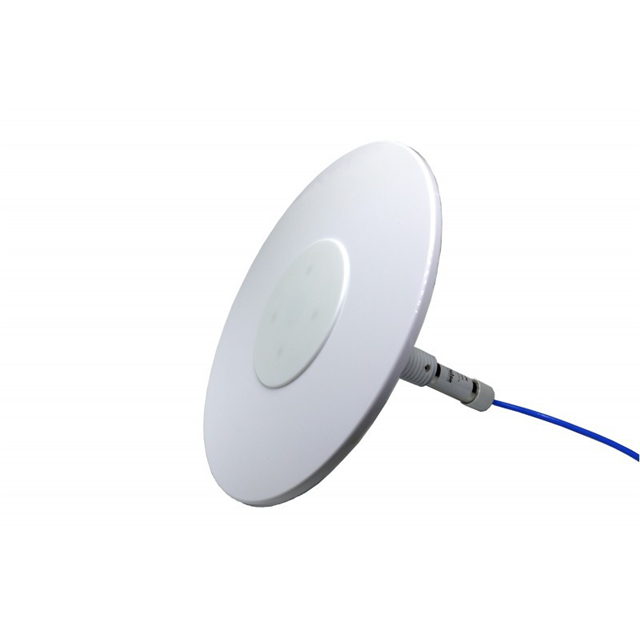

The DASUTWC500NF is a flat patch RF antenna manufactured by Pulse Electronics, designed for LTE and Wi-Fi applications. It operates across three frequency bands: 608MHz to 960MHz, 1.695GHz to 2.2GHz, and 2.3GHz to 2.7GHz. The antenna features an N-type female connector for panel mounting and includes a 500mm cable. It provides gains of 4dBi and 6dBi with a maximum VSWR of 2 and a power rating of 40W.

Antennas RF Feature Summary

• Supports LTE and Wi-Fi communication standards
• Utilizes ceramic technology for compact size and performance
• Features an N-type female connector interface

Antennas RF Applications

• LTE wireless communication systems
• Wi-Fi network infrastructure
• In-building distributed antenna systems

Antennas RF Procurement Notes

Verify the specific part number suffix against official documentation to ensure correct connector type and frequency band configuration. Confirm availability status as product lines may undergo discontinuation or revision. Cross-reference manufacturer datasheets for precise mechanical dimensions and environmental ratings prior to integration.

Antennas RF Selection Notes

Select this component for applications requiring integrated LTE and Wi-Fi coverage in space-constrained environments. The flat patch design facilitates low-profile installation. Ensure the N-type female interface matches existing system cabling requirements. Evaluate gain specifications against link budget calculations for optimal signal coverage.

Antennas RF Part Context

This model belongs to the DAS series of ultra-thin, low-clearance antennas from Pulse Electronics. These components are engineered for distributed antenna systems (DAS) in both indoor and outdoor settings. The series emphasizes high reliability and long-life expectancy suitable for demanding commercial and industrial deployments.

Antennas RF Replacement Considerations

The DASUTWC500MD is a related variant within the same family. Verify compatibility regarding connector type and frequency ranges before substitution. Consult official replacement guides to confirm functional equivalence.
