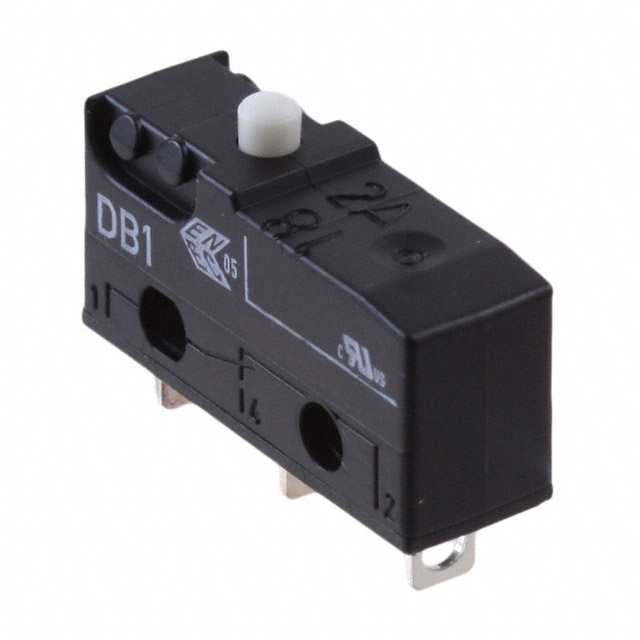

DB1C-A1AA

DB1C-A1AA is listed in the Limit Switches range at ChipApex. The manufacturer field lists ZF Electronics. Its product description is SWITCH SNAP ACTION SPDT 5A 125V. Review the specifications below when checking this part for your BOM.

Limit Switches specifications for DB1C-A1AA

• Description：SWITCH SNAP ACTION SPDT 5A 125V
• Series：DB
• Mfr：ZF Electronics
• Package：Bulk
• Circuit：SPDT
• Switch Function：On-Mom
• Current Rating (Amps)：5A (AC), 1A (DC)
• Voltage Rating - AC：125 V
• Actuator Type：Round (Pin Plunger)
• Mounting Type：Chassis Mount
• Termination Style：Solder Lug
• Ingress Protection：IP50 - Dust Protected
• Features：-
• Operating Force：150gf
• Release Force：-
• Operating Position：0.330" (8.4mm)
• Pretravel：0.040" (1.0mm)
• Differential Travel：0.004" (0.1mm)
• Overtravel：0.025" (0.6mm)
• Operating Temperature：-40°C ~ 120°C
• Voltage Rating - DC：48 V

Limit Switches datasheet and documents for DB1C-A1AA
