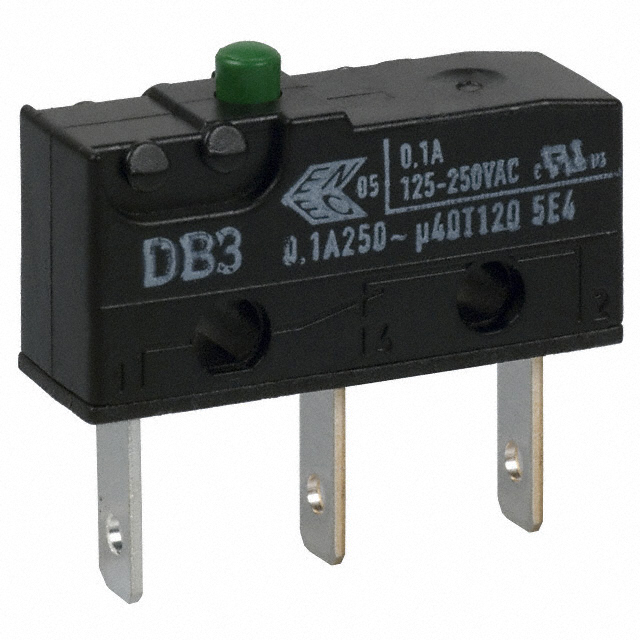

DB3CB1AA

DB3CB1AA is listed in the Limit Switches range at ChipApex. The manufacturer field lists ZF Electronics. Its product description is SWITCH SNAP ACT SPDT 0.1A 125V. Review the specifications below when checking this part for your BOM.

Limit Switches specifications for DB3CB1AA

• Description：SWITCH SNAP ACT SPDT 0.1A 125V
• Series：DB
• Mfr：ZF Electronics
• Package：Bulk
• Circuit：SPDT
• Switch Function：On-Mom
• Current Rating (Amps)：100mA (AC)
• Voltage Rating - AC：125 V
• Actuator Type：Round (Pin Plunger)
• Mounting Type：Chassis Mount
• Termination Style：Quick Connect - 0.110" (2.8mm)
• Ingress Protection：IP50 - Dust Protected
• Features：-
• Operating Force：150gf
• Release Force：-
• Operating Position：0.330" (8.4mm)
• Pretravel：0.040" (1.0mm)
• Differential Travel：0.004" (0.1mm)
• Overtravel：0.025" (0.6mm)
• Operating Temperature：-40°C ~ 120°C
• Voltage Rating - DC：-

Limit Switches datasheet and documents for DB3CB1AA
