DBA6927C1-FSMAF

Antennas RF Overview

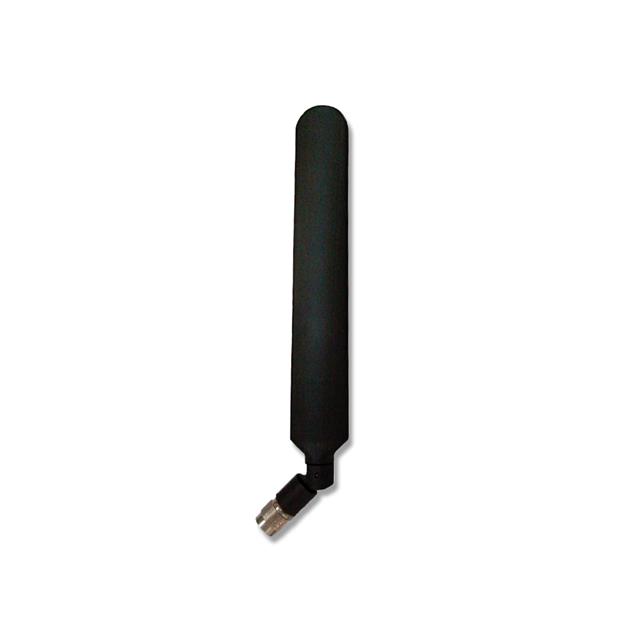

The DBA6927C1-FSMAF is a tilt whip RF antenna manufactured by TE Connectivity, designed for broadband wireless communication applications. It operates across two frequency bands: 698MHz to 960MHz and 1.71GHz to 2.7GHz. The component features an omni-directional radiation pattern with a maximum gain of 2.2dBi in the upper band and 0.5dBi in the lower band. It utilizes an SMA female connector for installation and supports a maximum power handling capacity of 3 Watts. The physical height is specified at 229.00mm.

Antennas RF Feature Summary

• Supports dual-band operation covering cellular and WiMax frequencies
• Features a tilt whip design for omnidirectional signal coverage
• Equipped with an SMA female connector for secure mounting

Antennas RF Applications

• AWS networks
• GSM systems
• LTE infrastructure
• PCS communications
• UMTS deployments
• WiMax networks

Antennas RF Procurement Notes

Verify the specific connector type and mechanical dimensions against the official datasheet before integration. Confirm RoHS compliance status and check for any product discontinuance notices or engineering change orders that may affect availability or specifications. Ensure the selected variant matches the required frequency range and gain characteristics for the intended deployment environment.

Antennas RF Selection Notes

Select this model when a compact, tilt-style antenna is required for multi-standard wireless devices. Consider the SMA female interface compatibility with the host equipment. Evaluate the 3W power rating against system requirements. Compare performance metrics such as VSWR and gain across the specified frequency ranges to ensure optimal signal integrity for the target application.

Antennas RF Part Context

This component belongs to the DBA6927 series of blade omnidirectional antennas from TE Connectivity. The series offers various connector options and configurations tailored for different wireless standards. The DBA6927C1-FSMAF specifically denotes the variant equipped with an SMA female connector, distinguishing it from other models in the family that may use TNC or other interfaces.

Antennas RF Replacement Considerations

Public confirmed substitute part numbers include DBA6927C1-FTNCM and DBA6927C1-FRTNM. Verify connector compatibility and mechanical fit when substituting. Cross-reference technical specifications to ensure equivalent performance in the target application.
