DF3-8P-2DSA(01)

$0.75

Description：CONN HEADER VERT 8POS 2MM
Series：DF3
Mfr：Hirose Electric Co Ltd
Package：Bag

SKU:2fa3f7f3d838 Category: Headers, Male Pins Brand: Hirose Electric Co Ltd

Consult the customer manager about the wholesale price.

consultation hotline：86-132-6715-2157

email：[email protected]
Contact the product manager for consultation. One-stop consultation is available.

Do you want a lower wholesale price? Please send us your inquiry and we will reply immediately.

Product introduction

DF3-8P-2DSA(01) is listed in the Headers, Male Pins range at ChipApex. The manufacturer field lists Hirose Electric Co Ltd. Its product description is CONN HEADER VERT 8POS 2MM. Review the specifications below when checking this part for your BOM.

Headers, Male Pins specifications for DF3-8P-2DSA(01)

Description：CONN HEADER VERT 8POS 2MM
Series：DF3
Mfr：Hirose Electric Co Ltd
Package：Bag
Connector Type：Header
Contact Type：Male Pin
Pitch - Mating：0.079" (2.00mm)
Number of Positions：8
Number of Rows：1
Row Spacing - Mating：-
Number of Positions Loaded：All
Style：Board to Board or Cable
Shrouding：Shrouded - 4 Wall
Mounting Type：Through Hole
Termination：Press-Fit, Solder
Fastening Type：Push-Pull
Contact Length - Mating：0.122" (3.10mm)
Contact Length - Post：0.114" (2.90mm)
Overall Contact Length：0.299" (7.60mm)
Insulation Height：0.197" (5.00mm)
Contact Shape：Square
Contact Finish - Mating：Gold
Contact Finish Thickness - Mating：8.00µin (0.203µm)
Contact Finish - Post：-
Contact Material：Brass
Insulation Material：Polyamide (PA), Nylon
Features：-
Operating Temperature：-55°C ~ 105°C
Ingress Protection：-
Material Flammability Rating：UL94 V-0
Insulation Color：Black
Current Rating (Amps)：3A
Voltage Rating：-

Headers, Male Pins datasheet and documents for DF3-8P-2DSA(01)

DF3-8P-2DSA(01)

Headers, Male Pins Overview

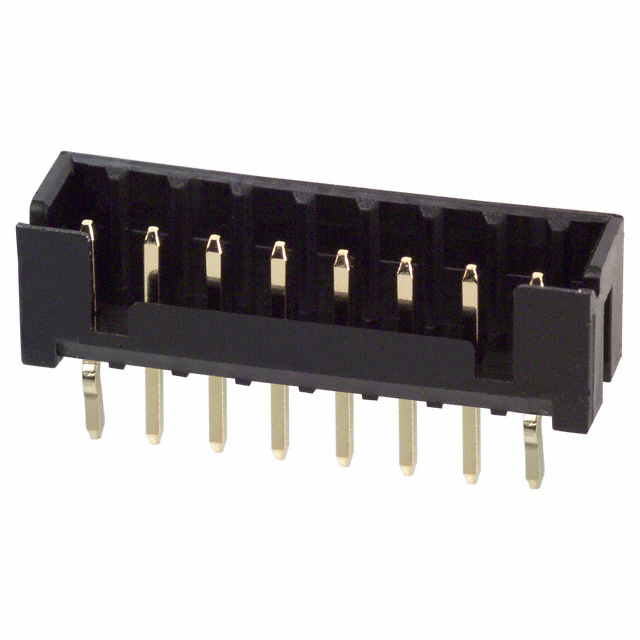

The Hirose DF3-8P-2DSA(01) is an 8-position, single-row PCB header from the DF3 series. It features a 2.00 mm pitch and straight through-hole mounting style. The connector utilizes brass contacts with gold plating for reliable signal transmission. Rated at 3A current and 100V to 250V voltage, it operates within a temperature range of -55°C to +105°C. The shrouded design ensures secure mating alignment.

Headers, Male Pins Feature Summary

Shrouded box-type housing provides scoop-proof protection and stubborn retention during mating.
Gold-plated square pin contacts ensure low contact resistance and corrosion resistance.
Straight orientation supports compact vertical board-to-board or wire-to-board integration.

Headers, Male Pins Applications

Business equipment such as copy machines and printers
Compact electronic interconnections requiring high reliability
Board-to-board adapter applications

Headers, Male Pins Procurement Notes

Verify the specific ordering suffix (01) against the manufacturer datasheet to confirm packaging quantity and terminal finish specifications. Ensure the selected variant matches the required operating temperature range and voltage rating for the target application environment before finalizing procurement orders.

Headers, Male Pins Selection Notes

Select this component when a shrouded, straight-mount header with gold contacts is required. The 2mm pitch allows for dense circuit layouts. Verify that the mating counterpart is compatible with the DF3 series push-pull locking mechanism. Confirm insulation material properties meet UL94 V-0 flammability requirements for the installation context.

Headers, Male Pins Part Context

This part belongs to the Hirose DF3 series, designed for discrete wire connections and board adapters. The series is characterized by its compact size and robust mechanical locking. It serves as a male header component, typically mated with corresponding female sockets in electronic assemblies.
