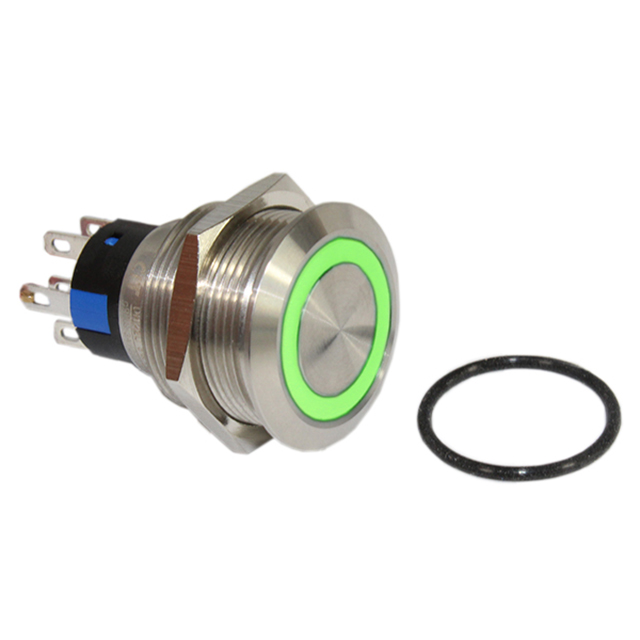

Pushbutton Switches DH22U2NBSGN product image

DH22U2NBSGN

$11.61
  • Description：SWITCH PB DPDT 3A 125V
  • Series：DH22U
  • Mfr：CIT Relay and Switch
  • Package：Tray

SKU:81c0d821c0e7 Category: Brand:

　　
  • Quantity
    • -
    • +
    • 　　　
ChipApex WhatsApp

Consult the customer manager about the wholesale price.

consultation hotline：86-132-6715-2157

email：[email protected]
Contact the product manager for consultation. One-stop consultation is available.


Do you want a lower wholesale price? Please send us your inquiry and we will reply immediately.

Submitting!
Submission successful!
Submission failed!
Email error!
Phone number error!

DH22U2NBSGN is listed in the Pushbutton Switches range at ChipApex. The manufacturer field lists CIT Relay and Switch. Its product description is SWITCH PB DPDT 3A 125V. Review the specifications below when checking this part for your BOM.

Pushbutton Switches specifications for DH22U2NBSGN

  • Description：SWITCH PB DPDT 3A 125V
  • Series：DH22U
  • Mfr：CIT Relay and Switch
  • Package：Tray
  • Mounting Type：Panel Mount, Front
  • Type：Anti-Vandal, Illuminated
  • Circuit：DPDT
  • Switch Function：On-Mom
  • Current Rating (Amps)：3A (AC)
  • Actuator Type：Round, Button, Flush
  • Actuator Marking：No Marking
  • Color - Actuator/Cap：Silver
  • Illumination Type, Color：LED, Green
  • Illumination Voltage (Nominal)：-
  • Termination Style：Solder Lug
  • Ingress Protection：IP67 - Dust Tight, Waterproof
  • Features：Stainless Steel
  • Panel Cutout Dimensions：Circular - 22.00mm Dia
  • Operating Temperature：-20°C ~ 55°C
  • Voltage Rating - DC：-
  • Voltage Rating - AC：125 V

Pushbutton Switches datasheet and documents for DH22U2NBSGN

DH22U2NBSGN
