DSC1033BI1-012.0000T

Oscillators Overview

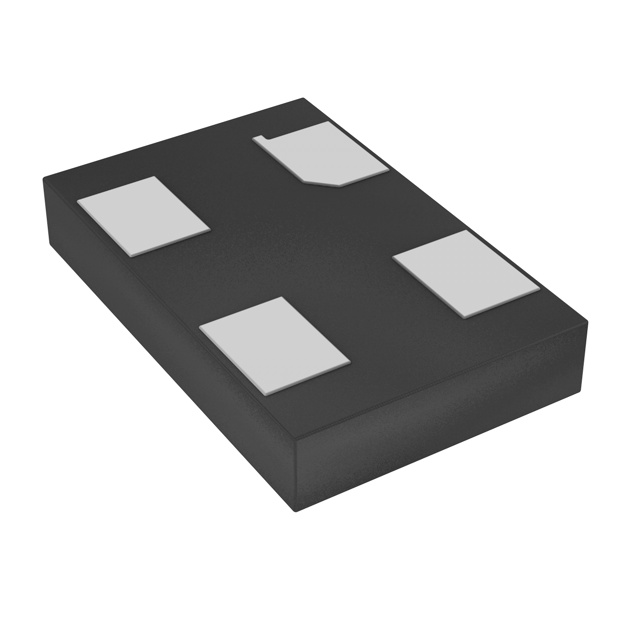

The DSC1033BI1-012.0000T is a MEMS oscillator manufactured by Microchip Technology, operating at a frequency of 12 MHz with CMOS output format. It functions within a supply voltage range of 3V to 3.6V and supports a standby mode for power management. The device features a frequency stability of ±50 ppm and operates across a temperature range of -40°C to +85°C. It is housed in a compact 4-VDFN surface-mount package measuring 2.0mm x 1.6mm x 0.9mm, designed for efficient integration into space-constrained electronic circuits.

Oscillators Feature Summary

• Utilizes MEMS technology for reliable oscillation performance
• Supports low-power standby operation mode
• Provides standard CMOS output signal compatibility

Oscillators Applications

• General-purpose timing applications requiring stable clock signals
• Embedded systems and microcontroller clock sources
• Consumer electronics devices needing compact timing solutions

Oscillators Procurement Notes

Verify the specific suffix 'T' indicates tape-and-reel packaging configuration when sourcing components. Confirm that the CMOS output variant matches the target circuit interface requirements. Ensure the operating temperature range aligns with the intended environmental conditions. Cross-reference the package dimensions against the PCB footprint design to guarantee proper assembly fit.

Oscillators Selection Notes

Select this component when a small form factor is required alongside moderate frequency stability. The CMOS output simplifies interfacing with digital logic without additional buffering. Consider the ±50 ppm tolerance for applications where high precision is not critical. Evaluate the 3V to 3.6V supply requirement against the system power budget.

Oscillators Part Context

This part belongs to the DSC1033 series of MEMS oscillators from Microchip Technology. The series offers various frequencies and packages to support diverse design needs. The BI1 suffix typically denotes specific electrical characteristics and package type within the product line. This model provides a balance between size, cost, and performance for standard timing tasks.

Oscillators Replacement Considerations

Direct substitutes may include other DSC1033 variants with matching frequency and output format. Verify pin compatibility and package dimensions before swapping. Check if alternative models offer improved stability or different supply voltage ranges. Consult official documentation for cross-reference lists to ensure functional equivalence.
