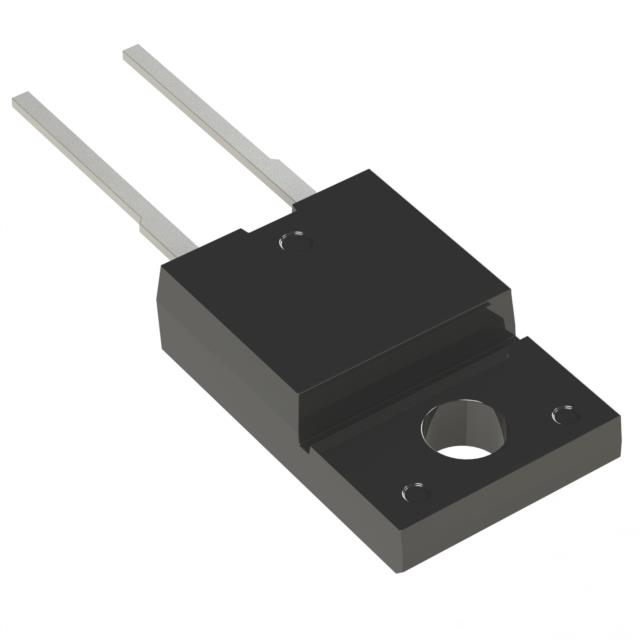

DTH8R06FP

$0.85

Description：DIODE STANDARD 600V 8A ITO220AC
Series：-
Mfr：Diodes Incorporated
Package：Tube

SKU:2545432a50c7 Category: Single Diodes Brand: Diodes Incorporated

Consult the customer manager about the wholesale price.

consultation hotline：86-132-6715-2157

email：[email protected]
Contact the product manager for consultation. One-stop consultation is available.

Do you want a lower wholesale price? Please send us your inquiry and we will reply immediately.

Product introduction

DTH8R06FP is listed in the Single Diodes range at ChipApex. The manufacturer field lists Diodes Incorporated. Its product description is DIODE STANDARD 600V 8A ITO220AC. Review the specifications below when checking this part for your BOM.

Single Diodes specifications for DTH8R06FP

Description：DIODE STANDARD 600V 8A ITO220AC
Series：-
Mfr：Diodes Incorporated
Package：Tube
Technology：Standard
Voltage - DC Reverse (Vr) (Max)：600 V
Current - Average Rectified (Io)：8A
Voltage - Forward (Vf) (Max) @ If：2.9 V @ 8 A
Speed：Fast Recovery =< 500ns, > 200mA (Io)
Reverse Recovery Time (trr)：45 ns
Current - Reverse Leakage @ Vr：30 µA @ 600 V
Capacitance @ Vr, F：50pF @ 10V, 1MHz
Mounting Type：Through Hole
Package / Case：TO-220-2 Full Pack, Isolated Tab
Supplier Device Package：ITO-220AC (Type WX)
Operating Temperature - Junction：-55°C ~ 150°C
Grade：-
Qualification：-

Single Diodes datasheet and documents for DTH8R06FP

DTH8R06FP

Single Diodes Overview

The DTH8R06FP is an 8A hyper-fast epitaxial rectifier manufactured by Diodes Incorporated. It features a peak repetitive reverse voltage of 600V and a forward voltage drop of 2.9V at 8A. The device exhibits a reverse recovery time of 25ns and a reverse leakage current of 30µA at 600V. Packaged in ITO-220AC, it supports junction temperatures up to +175°C with a thermal resistance of 5°C/W from junction to case.

Single Diodes Feature Summary

Soft, hyper-fast switching capability
Glass passivated die construction
Low forward voltage drop
High reliability and efficiency

Single Diodes Applications

Rectification and freewheeling for SMPS
LED lighting
Adapters
Battery chargers
Home appliances
Office equipment
Telecommunication applications

Single Diodes Procurement Notes

Verify the specific datasheet revision (DS42891 Rev. 4 - 2) against your design requirements. Confirm compliance with RoHS 3 and Halogen/Antimony-free standards if environmental regulations apply. Ensure mounting torque does not exceed 0.5 N.m during installation. Validate thermal management strategies based on the specified junction-to-case thermal resistance.

Single Diodes Selection Notes

Select this component for continuous conduction mode power factor corrections and hard switching conditions. Consider the 600V rating and 8A average rectified output current for suitable load requirements. Evaluate the 25ns reverse recovery time for high-frequency switching applications. Check the operating temperature range (-55°C to +175°C) against environmental constraints.

Single Diodes Part Context

This part belongs to Diodes Incorporated's Hyper-Fast Epitaxial Rectifier series. It utilizes advanced epitaxial technology to achieve fast switching characteristics while maintaining low forward voltage. The ITO-220AC package provides robust mechanical stability and efficient heat dissipation for through-hole mounting applications.
