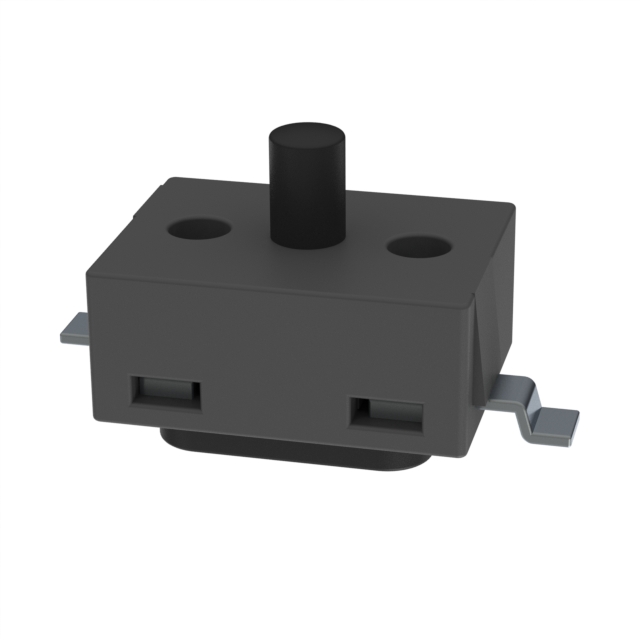

DTS 111 BP-T

DTS 111 BP-T is listed in the Limit Switches range at ChipApex. The manufacturer field lists Knitter-Switch. Its product description is DETECTOR SWITCH, ON-(MOM), TOP A. Review the specifications below when checking this part for your BOM.

Limit Switches specifications for DTS 111 BP-T

• Description：DETECTOR SWITCH, ON-(MOM), TOP A
• Series：DTS
• Mfr：Knitter-Switch
• Package：Tape & Reel (TR),Cut Tape (CT)
• Circuit：SPST-NC (DB)
• Switch Function：On-Off
• Current Rating (Amps)：5mA (DC)
• Voltage Rating - AC：-
• Actuator Type：Angled Toggle (Detector)
• Mounting Type：Surface Mount
• Termination Style：Gull Wing
• Ingress Protection：-
• Features：-
• Operating Force：35gf
• Release Force：-
• Operating Position：-
• Pretravel：-
• Differential Travel：-
• Overtravel：-
• Operating Temperature：-40°C ~ 80°C
• Voltage Rating - DC：5 V

Limit Switches datasheet and documents for DTS 111 BP-T
