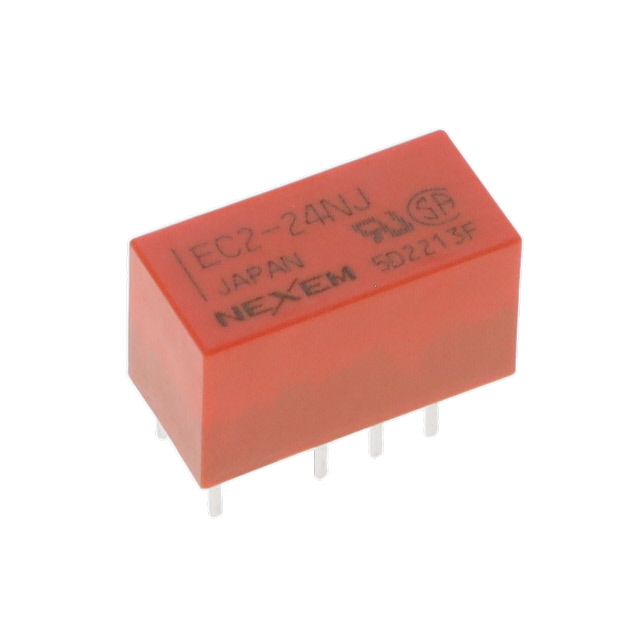

EC2-24NJ

EC2-24NJ is listed in the Signal Relays, Up To 2 Amps range at ChipApex. The manufacturer field lists KEMET. Its product description is RELAY GEN PURPOSE DPDT 2A 24V. Review the specifications below when checking this part for your BOM.

Signal Relays, Up To 2 Amps specifications for EC2-24NJ

• Description：RELAY GEN PURPOSE DPDT 2A 24V
• Series：EC2
• Mfr：KEMET
• Package：Tube
• Mounting Type：Through Hole
• Coil Voltage：24VDC
• Contact Form：DPDT (2 Form C)
• Contact Rating (Current)：2:00 AM
• Switching Voltage：250VAC, 220VDC - Max
• Load - Max Switching：500VA, 440W
• Coil Current：8.3 mA
• Coil Type：Non Latching
• Features：-
• Termination Style：PC Pin
• Seal Rating：-
• Coil Insulation：-
• Must Operate Voltage：18 VDC
• Must Release Voltage：2.4 VDC
• Operate Time：2 ms
• Release Time：1 ms
• Operating Temperature：-40°C ~ 85°C
• Contact Material：Silver Alloy, Gold Alloy
• Approval Agency：CSA, TUV, UL
• Relay Type：General Purpose
• Grade：-
• Qualification：-

Signal Relays, Up To 2 Amps datasheet and documents for EC2-24NJ
