ELF-22V025B

Common Mode Chokes Overview

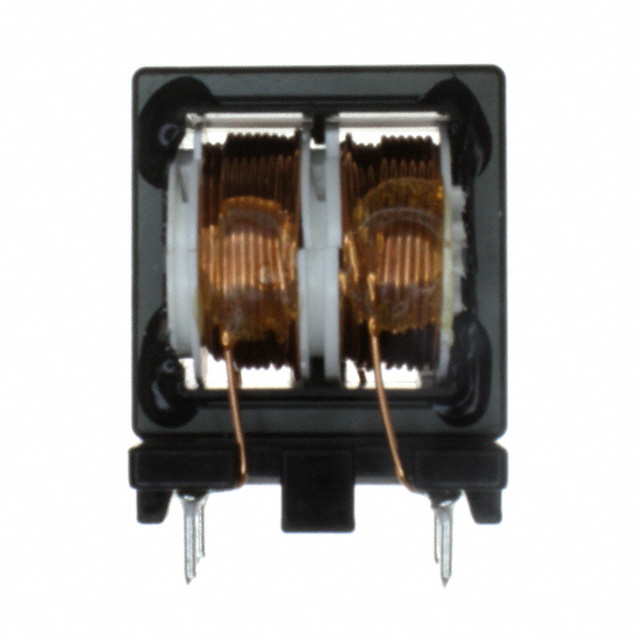

The ELF-22V025B is a two-line common mode choke manufactured by Panasonic Electronic Components. It is designed for through-hole mounting applications and supports a current rating of 2.5A. The component belongs to the ELF series within the passive components category, specifically classified under filters and common mode chokes.

Common Mode Chokes Feature Summary

• Two-line configuration for common mode noise suppression
• Through-hole mounting design for board integration

Common Mode Chokes Applications

• Common mode noise filtering in electronic circuits
• Signal integrity protection in two-line systems

Common Mode Chokes Procurement Notes

Verify component status as obsolete or end-of-life before procurement planning. Confirm RoHS compliance details with the manufacturer or authorized distributors. Ensure replacement strategies are evaluated due to potential supply constraints associated with discontinued part numbers.

Common Mode Chokes Selection Notes

Select this component for applications requiring through-hole common mode chokes with a 2.5A current rating. Consider the two-line topology for balanced noise suppression. Evaluate lifecycle status and availability constraints when integrating into new designs.

Common Mode Chokes Part Context

The ELF-22V025B is part of Panasonic's ELF series of common mode chokes. This series provides passive filtering solutions for electromagnetic interference reduction. The specific model targets through-hole implementation needs in general-purpose electronic assemblies.

Common Mode Chokes Replacement Considerations

Public confirmed substitute part numbers are not available in the provided documentation. Verify equivalent specifications with Panasonic Industry or authorized distributors for suitable alternatives.
