EMI8131MUTAG

Common Mode Chokes Overview

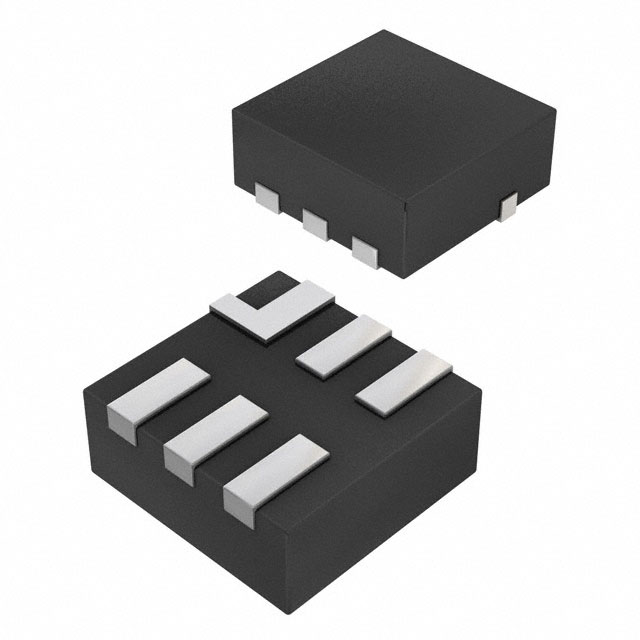

The onsemi EMI8131MUTAG is a common mode filter and ESD protection device designed for high-speed data lines. It operates at a working voltage of 3.3 V with a breakdown voltage of 4 V. The component features a clamping voltage of 13.4 V and supports data rates up to 1.5 Gbps. Packaged in a 6-pin surface-mount DFN, it provides protection against electrostatic discharge events rated at 15 kV contact and 16 kV air gap. The device functions within an operating temperature range of -40 °C to +85 °C.

Common Mode Chokes Feature Summary

• Integrated common mode filtering and ESD suppression for signal integrity
• Supports high-speed data transmission up to 1.5 Gbps
• Robust protection against electrostatic discharge events

Common Mode Chokes Applications

• High-speed serial data line protection
• Portable electronic devices requiring compact ESD solutions
• Interfaces supporting 1.5 Gbps data rates

Common Mode Chokes Procurement Notes

Verify current availability status as the manufacturer has scheduled this part for obsolescence. Confirm final order quantities and lead times directly with authorized distributors or the manufacturer prior to procurement. Ensure compliance with RoHS directives and check for any specific handling requirements associated with end-of-life components.

Common Mode Chokes Selection Notes

Select this component for applications requiring combined EMI filtering and ESD protection in space-constrained designs. The 3.3 V operating voltage suits low-voltage digital interfaces. Consider the 1.5 Gbps bandwidth limit when evaluating compatibility with target data protocols. The small footprint makes it suitable for dense PCB layouts.

Common Mode Chokes Part Context

This component belongs to onsemi's EMI813X series of ESD suppressors and TVS diodes. These devices are engineered to protect sensitive electronics from transient voltage spikes while maintaining signal integrity. The series offers various channel configurations and package options tailored for different interface speeds and form factors.

Common Mode Chokes Replacement Considerations

Check for active substitutes within the EMI813X family or compatible ESD protection arrays. Verify pinout compatibility and electrical specifications such as breakdown voltage and capacitance before substituting.
