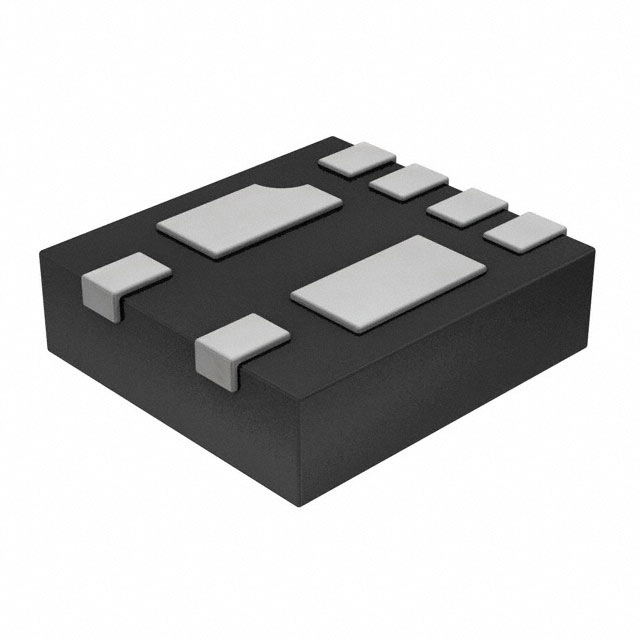

ESDA17P100-1U2M

ESDA17P100-1U2M is listed in the Tvs Diodes range at ChipApex. The manufacturer field lists STMicroelectronics. Its product description is TVS DIODE 15VWM 30VC 6UQFN. Review the specifications below when checking this part for your BOM.

Tvs Diodes specifications for ESDA17P100-1U2M

• Description：TVS DIODE 15VWM 30VC 6UQFN
• Series：ESDA
• Mfr：STMicroelectronics
• Package：Tape & Reel (TR),Cut Tape (CT)
• Type：Zener
• Bidirectional Channels：-
• Voltage - Reverse Standoff (Typ)：15V (Max)
• Voltage - Breakdown (Min)：15.7V
• Voltage - Clamping (Max) @ Ipp：30V
• Current - Peak Pulse (10/1000µs)：160A (8/20µs)
• Power - Peak Pulse：4800W (4.8kW)
• Power Line Protection：No
• Applications：General Purpose
• Capacitance @ Frequency：1200pF @ 1MHz
• Operating Temperature：-55°C ~ 150°C (TJ)
• Mounting Type：Surface Mount
• Package / Case：6-UFDFN Exposed Pad
• Supplier Device Package：6-µQFN (1.8x2)
• Unidirectional Channels：1
• Grade：-
• Qualification：-

Tvs Diodes datasheet and documents for ESDA17P100-1U2M
