ESP-16-000

Power Line Filter Modules Overview

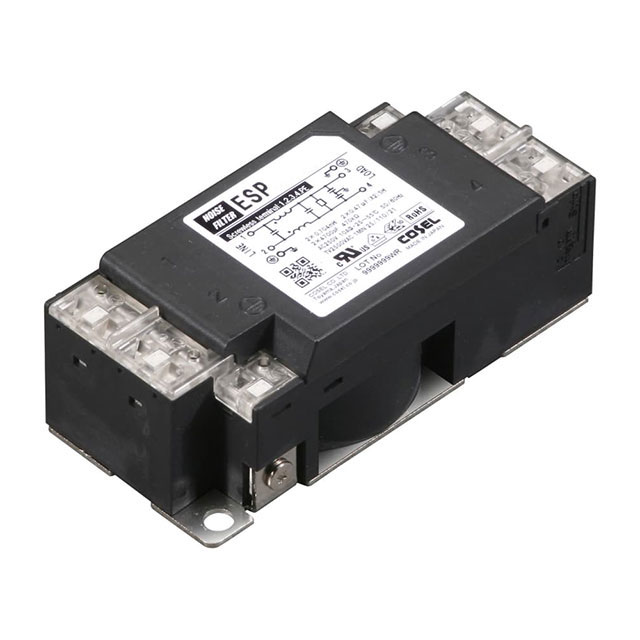

The ESP-16-000 is a common mode EMI/EMC power line filter manufactured by Cosel USA, Inc. It supports a voltage rating of 250 VAC and 250 VDC with a current capacity of 16 A. Designed for chassis mounting, it utilizes screwless termination. The unit features a leakage current of 5 uA and weighs 170 g. It belongs to the ES series and is classified under power condition subcategories.

Power Line Filter Modules Feature Summary

• Provides common mode EMI/EMC filtering capabilities
• Utilizes screwless termination for secure connections
• Designed for direct chassis mounting installation

Power Line Filter Modules Applications

• Industrial equipment power conditioning
• Commercial ITE power supply protection
• General purpose EMI suppression in AC/DC systems

Power Line Filter Modules Procurement Notes

Verify the specific datasheet revision and compliance certifications such as UL or CSA before integration. Confirm that the chassis mounting requirements align with the mechanical design. Ensure the 16 A current rating and 250 VAC/VDC limits meet the system's electrical specifications. Check for any regional regulatory approvals required for the target market deployment.

Power Line Filter Modules Selection Notes

Select this component when common mode noise reduction is required for single-phase applications. The chassis mount style dictates the enclosure design constraints. Compare leakage current specifications against safety standards if human contact is possible. Verify that the screwless termination method is compatible with the available wiring infrastructure.

Power Line Filter Modules Part Context

This part belongs to the ES series of power line filters from Cosel. It is distinct from DIN rail mounted variants like the ESP-16-331-D due to its chassis mounting configuration. The product falls under the broader category of power condition components used for electromagnetic compatibility.

Power Line Filter Modules Replacement Considerations

The ESP-16-000-D serves as a related variant within the same family, differing primarily in mounting style. Direct substitution requires verifying mechanical fitment differences between chassis and DIN rail configurations.
