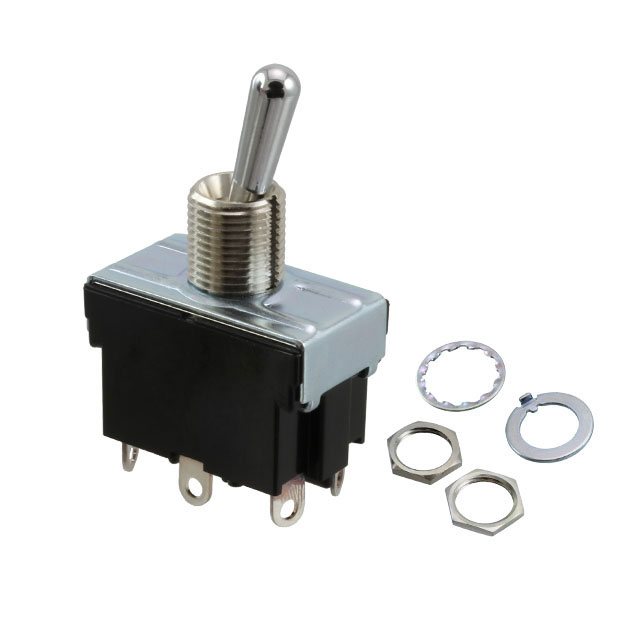

ET210T12-Z

ET210T12-Z is listed in the Toggle Switches range at ChipApex. The manufacturer field lists Nidec Components Corporation. Its product description is SWITCH TOGGLE DPDT 10A 125V. Review the specifications below when checking this part for your BOM.

Toggle Switches specifications for ET210T12-Z

• Description：SWITCH TOGGLE DPDT 10A 125V
• Series：ET
• Mfr：Nidec Components Corporation
• Package：Bulk
• Mounting Type：Panel Mount
• Circuit：DPDT
• Switch Function：On-Off-Mom
• Current Rating (Amps)：10A (AC)
• Voltage Rating - AC：125 V
• Voltage Rating - DC：-
• Actuator Type：Standard Round
• Actuator Length：17.00mm
• Illumination：Non-Illuminated
• Illumination Type, Color：-
• Illumination Voltage (Nominal)：-
• Termination Style：Solder Lug
• Panel Cutout Dimensions：Circular - 12.50mm Dia
• Bushing Thread：M12 x 1
• Ingress Protection：-
• Features：-
• Operating Temperature：-

Toggle Switches datasheet and documents for ET210T12-Z
