F1100BB01

Power Line Filter Modules Overview

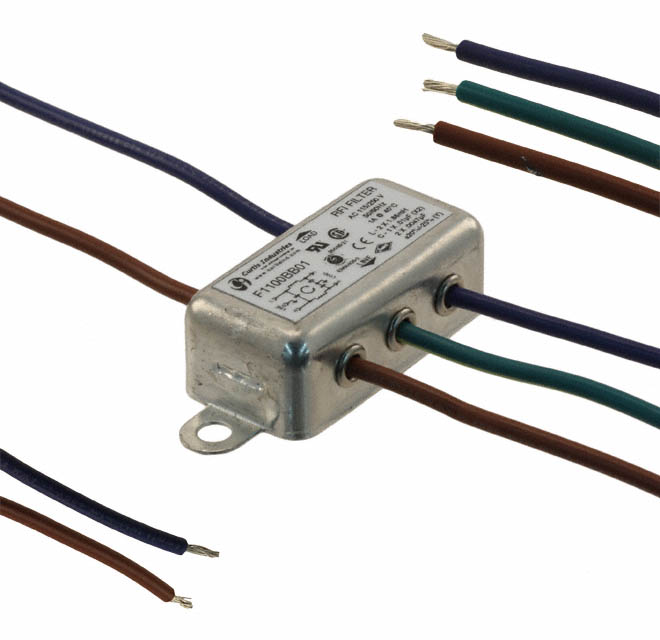

The Curtis Industries F1100BB01 is a single-phase EMC/EMI line filter module designed for chassis mounting. It features wire leads and operates at a rated voltage of 250VAC maximum at 50/60Hz. The component has a current rating of 1A, making it suitable for low-power applications requiring noise suppression in AC power lines.

Power Line Filter Modules Feature Summary

• Single-stage RFI/EMI filtering for AC power lines
• Chassis base mount configuration with wire leads
• Designed for 50/60Hz operation

Power Line Filter Modules Applications

• Industrial control panels
• Medical equipment power supplies
• Test and measurement instruments

Power Line Filter Modules Procurement Notes

Verify the specific lead type and length requirements against the application design before procurement. Confirm that the chassis mounting footprint aligns with the enclosure specifications. Ensure the 1A current rating meets the load demands to prevent thermal issues during continuous operation.

Power Line Filter Modules Selection Notes

Select this model when a compact, single-phase filter is required for 250VAC systems. Compare against the F1100BB03 if higher current capacity (3A) is needed. Consider the F1150 series if different form factors or additional filtering stages are necessary for the specific EMI profile.

Power Line Filter Modules Part Context

This component belongs to the Curtis F1100 series of RFI filters. It is part of a family that includes variants with different current ratings and mounting options. The series is commonly used in environments where electromagnetic interference must be minimized in sensitive electronic circuits powered by standard AC mains.

Power Line Filter Modules Replacement Considerations

The F1100BB03 is a verified substitute offering 3A current rating with identical mounting and voltage specifications. Other F1100 series variants may serve as alternatives if current requirements differ. Verify pinout and physical dimensions before substituting.
