F1150BB03

Power Line Filter Modules Overview

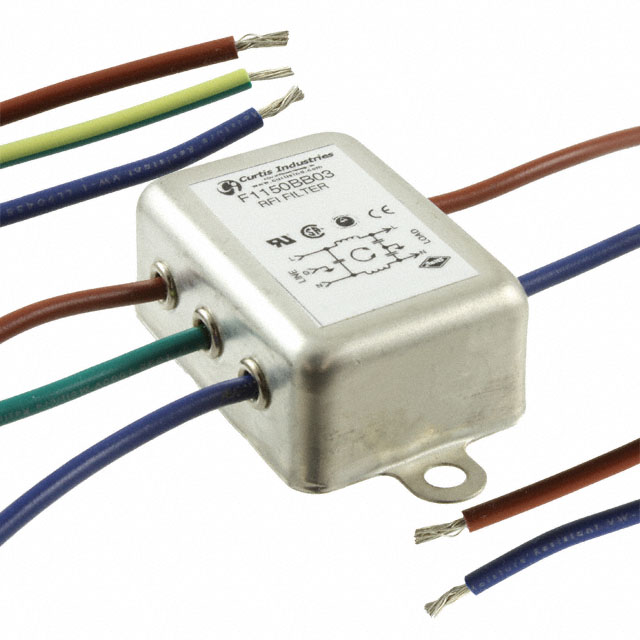

The F1150BB03 is a single-phase EMI/RFI line filter manufactured by Curtis Industries. It features chassis mount installation and utilizes wire leads for connection. The component is rated for 250VAC operation with a current capacity of 3A at 50/60Hz. Designed as a single-stage filter, it provides common mode noise suppression. The unit holds UL, CSA, TUV, and CE approvals and complies with RoHS standards.

Power Line Filter Modules Feature Summary

• Provides low-leakage solution for common mode EMI/RFI compliance
• Single-stage design for conducted emission control
• Includes multiple international safety certifications

Power Line Filter Modules Applications

• General purpose electronic equipment
• Lighting systems
• Industrial scales

Power Line Filter Modules Procurement Notes

Verify the specific lead time and minimum order quantity with authorized distributors before placing orders. Confirm that the wire lead configuration matches the system requirements. Ensure the chassis mounting dimensions align with the enclosure design. Check for updated regulatory compliance documentation if required for the target market.

Power Line Filter Modules Selection Notes

Select this model when a 3A current rating and 250VAC voltage are sufficient for the application. Consider the wire lead termination style for ease of integration. Evaluate the need for single-stage filtering versus higher attenuation requirements. Verify space constraints for chassis mounting.

Power Line Filter Modules Part Context

This component belongs to the F1150 series of RFI filters from Curtis Industries. The series offers various current ratings from 1A to 20A and different terminal configurations including screw terminals and quick connects. It is designed for economical EMI suppression in general-purpose applications.

Power Line Filter Modules Replacement Considerations

Other models in the F1150 series may serve as substitutes if current ratings or terminal types differ. Verify electrical specifications and physical dimensions before swapping components.
