F1150BB10

Power Line Filter Modules Overview

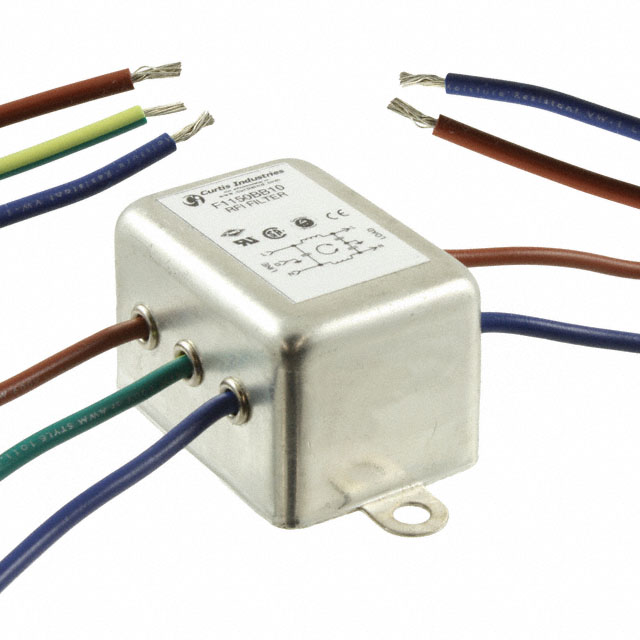

The Curtis Industries F1150BB10 is a single-phase EMI/RFI power line filter module designed for AC power applications. It features a rated current of 10 A and operates at voltages up to 250 VAC within the 50/60 Hz frequency range. The unit utilizes a single-stage filtering architecture to suppress electromagnetic interference. Physical integration is achieved through wire leads, facilitating direct connection to circuitry without requiring chassis mounting hardware.

Power Line Filter Modules Feature Summary

• Single-stage EMI/RFI suppression for AC power lines
• Wire lead termination for flexible installation
• Rated for 10 A continuous current operation

Power Line Filter Modules Applications

• AC power entry filtering
• Electromagnetic interference suppression in electronic equipment
• Single-phase power line conditioning

Power Line Filter Modules Procurement Notes

Verify that the specific part number F1150BB10 matches the required electrical specifications, including the 10 A current rating and 250 VAC voltage limit. Confirm that the wire lead configuration aligns with the target assembly's wiring harness or PCB layout requirements before finalizing procurement orders.

Power Line Filter Modules Selection Notes

Select this component when a compact, single-phase solution is needed for moderate current loads up to 10 A. The wire lead design offers an alternative to panel-mount filters where space constraints or mechanical integration preferences favor direct wiring over screw-terminal or chassis-mounted options.

Power Line Filter Modules Part Context

This component belongs to the Curtis Industries F1100/F1150/F1199 series of general-purpose single-phase filters. These modules are engineered to provide reliable noise attenuation in standard AC power environments, serving as a critical interface between the power source and sensitive downstream electronics.

Power Line Filter Modules Replacement Considerations

Consult official Curtis Industries documentation for verified substitute part numbers within the same series. Ensure any replacement maintains identical current ratings, voltage limits, and termination styles to preserve system compatibility.
