F1199AA02

Power Line Filter Modules Overview

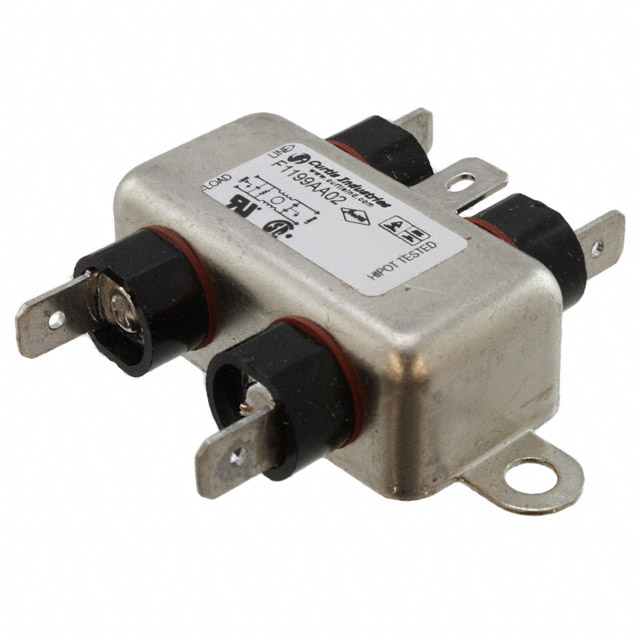

The F1199AA02 is a single-phase EMC/EMI line filter module manufactured by Curtis Industries. It is designed for chassis mounting and features quick-connect terminals for rapid installation. The component operates at a rated voltage of 250V AC and supports a current capacity of 2A within the 50/60Hz frequency range. This single-stage filter provides noise suppression for power lines, ensuring compliance with electromagnetic interference standards in electrical systems.

Power Line Filter Modules Feature Summary

• Single-stage EMI/EMC noise filtration for power line applications
• Quick-connect terminal interface for simplified wiring
• Chassis mount design for secure panel integration

Power Line Filter Modules Applications

• Industrial control panels requiring EMI suppression
• Power supply input filtering for electronic equipment
• Electromagnetic compatibility enhancement in AC power circuits

Power Line Filter Modules Procurement Notes

Verify the exact datasheet specifications directly from Curtis Industries before procurement. Confirm that the 2A current rating and 250V AC voltage limits align with your system requirements. Ensure the quick-connect terminal type matches your existing wiring harnesses. Check for any specific RoHS or environmental compliance certifications required for your deployment environment.

Power Line Filter Modules Selection Notes

Select this model when a single-phase, low-current (2A) EMI filter is needed for chassis-mounted applications. It is suitable for environments where quick-connect termination is preferred over screw terminals. Consider the physical dimensions and mounting hole patterns to ensure compatibility with your enclosure design. Verify that the operating temperature range meets your application's thermal conditions.

Power Line Filter Modules Part Context

This component belongs to the Curtis Industries F11xx series of power line filter modules. These filters are engineered to attenuate high-frequency noise on AC power lines, protecting sensitive electronics from electromagnetic interference. The series offers various current ratings and connection types to suit different industrial and commercial power distribution needs.

Power Line Filter Modules Replacement Considerations

Consult official Curtis Industries documentation for verified substitute part numbers. Ensure any replacement maintains the same 2A current rating, 250V AC voltage rating, and quick-connect terminal configuration. Verify that the new component fits the existing chassis mounting footprint and meets identical EMI/EMC performance standards.
