F1299AA10

Power Line Filter Modules Overview

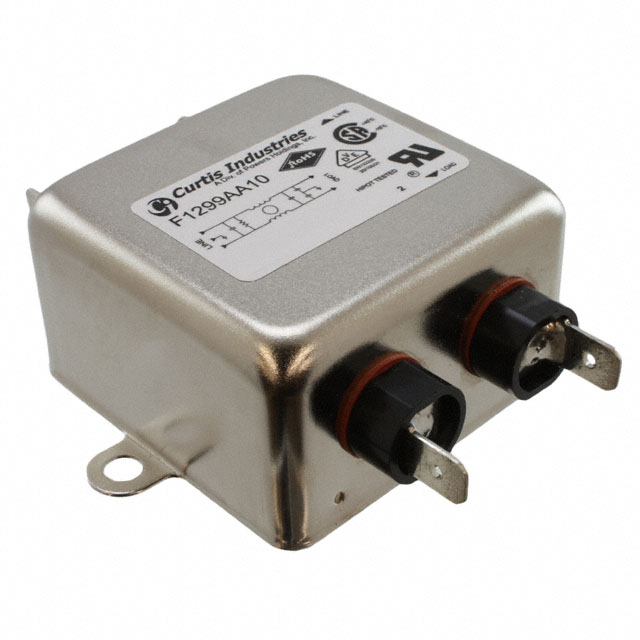

The Curtis Industries F1299AA10 is a single-phase EMC/EMI power line filter designed for chassis mounting. It features a quick connect termination style and operates at a rated AC voltage of 250V with a current capacity of 10A. The unit functions within a frequency range of 50/60Hz and utilizes a single-stage configuration to mitigate electromagnetic interference.

Power Line Filter Modules Feature Summary

• Single-phase EMI/RFI filtering capability
• Chassis mount installation type
• Quick connect termination style

Power Line Filter Modules Applications

• General purpose electrical equipment noise suppression
• Power line signal integrity maintenance

Power Line Filter Modules Procurement Notes

Verify the specific part number F1299AA10 against official Curtis Industries documentation to confirm single-stage configuration and 10A rating. Ensure compatibility with 250VAC systems and quick connect terminals before integration. Cross-reference certification marks such as CE, CSA, TUV, and UR for regional compliance requirements.

Power Line Filter Modules Selection Notes

Select this component when single-stage attenuation is sufficient for the application's EMI profile. Confirm that the 10A current rating meets load requirements and that chassis mounting space accommodates the physical dimensions. Verify that quick connect terminals align with available wiring harnesses or PCB layouts.

Power Line Filter Modules Part Context

This component belongs to the Curtis Industries F1299 series of RFI filters. The series provides standardized solutions for reducing conducted emissions in AC power lines. The F1299AA10 variant specifically denotes the single-stage configuration with defined voltage and current ratings within the broader product family.

Power Line Filter Modules Replacement Considerations

Consult official Curtis Industries substitution guides for verified equivalents. Generic cross-references may not match the single-stage topology or terminal specifications.
