F1299AA20

Power Line Filter Modules Overview

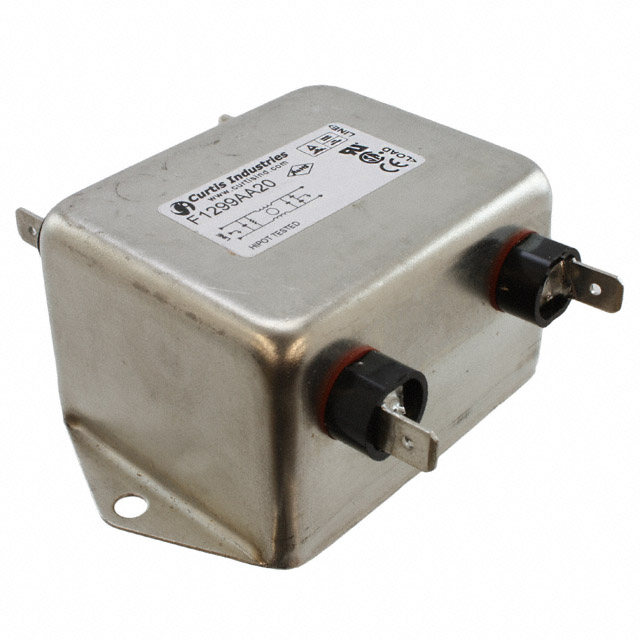

The Curtis Industries F1299AA20 is a single-phase EMC/EMI line filter designed for chassis mounting. It features a current rating of 20 A and an AC voltage rating of 250 VAC. The unit operates at 50/60 Hz and utilizes a two-stage configuration to suppress electromagnetic interference. Termination is achieved via quick connect terminals, facilitating integration into power distribution systems.

Power Line Filter Modules Feature Summary

• Single-phase EMI/RFI suppression architecture
• Chassis mount mechanical design
• Quick connect terminal termination style

Power Line Filter Modules Applications

• General purpose industrial equipment filtering
• Power supply input stages
• Electrical control panels

Power Line Filter Modules Procurement Notes

Verify the specific suffix against official Curtis Industries documentation to confirm exact electrical ratings and terminal configurations. Ensure compatibility with existing chassis mounting holes and wire gauge requirements before procurement. Cross-reference certification marks such as CE, CSA, TUV, and UR if required by local regulations.

Power Line Filter Modules Selection Notes

Select this component when a 20 A single-phase filter is required for 250 VAC applications. Confirm that the quick connect termination style matches the mating connector or wire preparation method. Evaluate leakage current specifications against safety standards applicable to the end equipment.

Power Line Filter Modules Part Context

This part belongs to the Curtis F1299 series of RFI filters. The series offers various current ratings and configurations for single-phase power lines. The F1299AA20 specifically denotes the 20 A variant within this product family.

Power Line Filter Modules Replacement Considerations

TE Connectivity Corcom 6609031-3 is documented as a similar substitute part number.
