F1299BB10

Power Line Filter Modules Overview

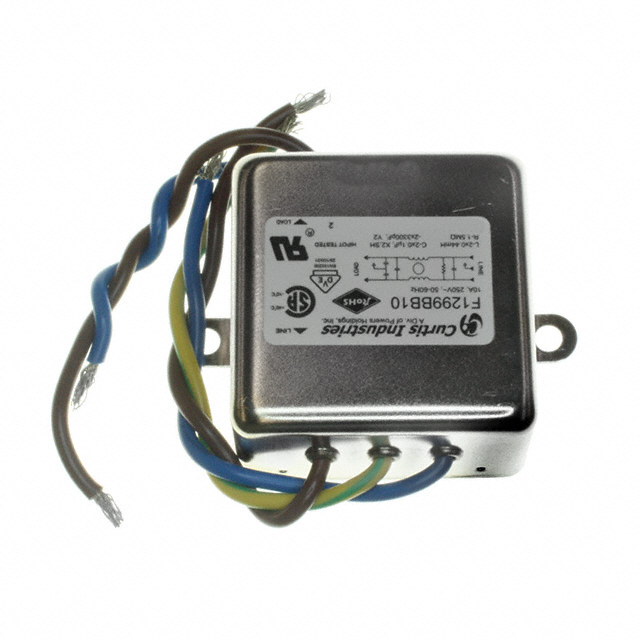

The F1299BB10 is a single-stage EMC/EMI line filter module manufactured by Curtis Industries. It is designed for AC power line applications with a voltage rating of 250V and a current rating of 10A at 50/60Hz. The unit features wire leads for connection and has a leakage current specification ranging from 0.15 to 0.25 mA.

Power Line Filter Modules Feature Summary

• Single-stage electromagnetic interference filtering
• Chassis mount configuration
• Wire lead termination

Power Line Filter Modules Applications

• AC power line noise suppression
• Industrial machinery control systems
• Commercial equipment EMC compliance

Power Line Filter Modules Procurement Notes

Verify the specific datasheet version for the F1299BB10 to confirm exact physical dimensions and mounting hole patterns before integration. Ensure the operating environment temperature range aligns with the component's rated specifications. Confirm that the wire lead length meets the system design requirements.

Power Line Filter Modules Selection Notes

Select this component when single-stage attenuation is sufficient for the target application's EMI profile. The 10A rating suits moderate power loads, while the 250V rating fits standard AC mains. Consider chassis mounting constraints and available wire lead access points during the mechanical design phase.

Power Line Filter Modules Part Context

Curtis Industries manufactures electrical components for machinery control in commercial and industrial machines. This filter belongs to their power line filter module series, designed to mitigate conducted emissions in AC circuits. The company focuses on robust components for demanding industrial environments.

Power Line Filter Modules Replacement Considerations

Publicly confirmed substitute part numbers are not available in the provided source material. Verify compatibility with existing circuit parameters if considering alternative manufacturers.
