F1350AA10

Power Line Filter Modules Overview

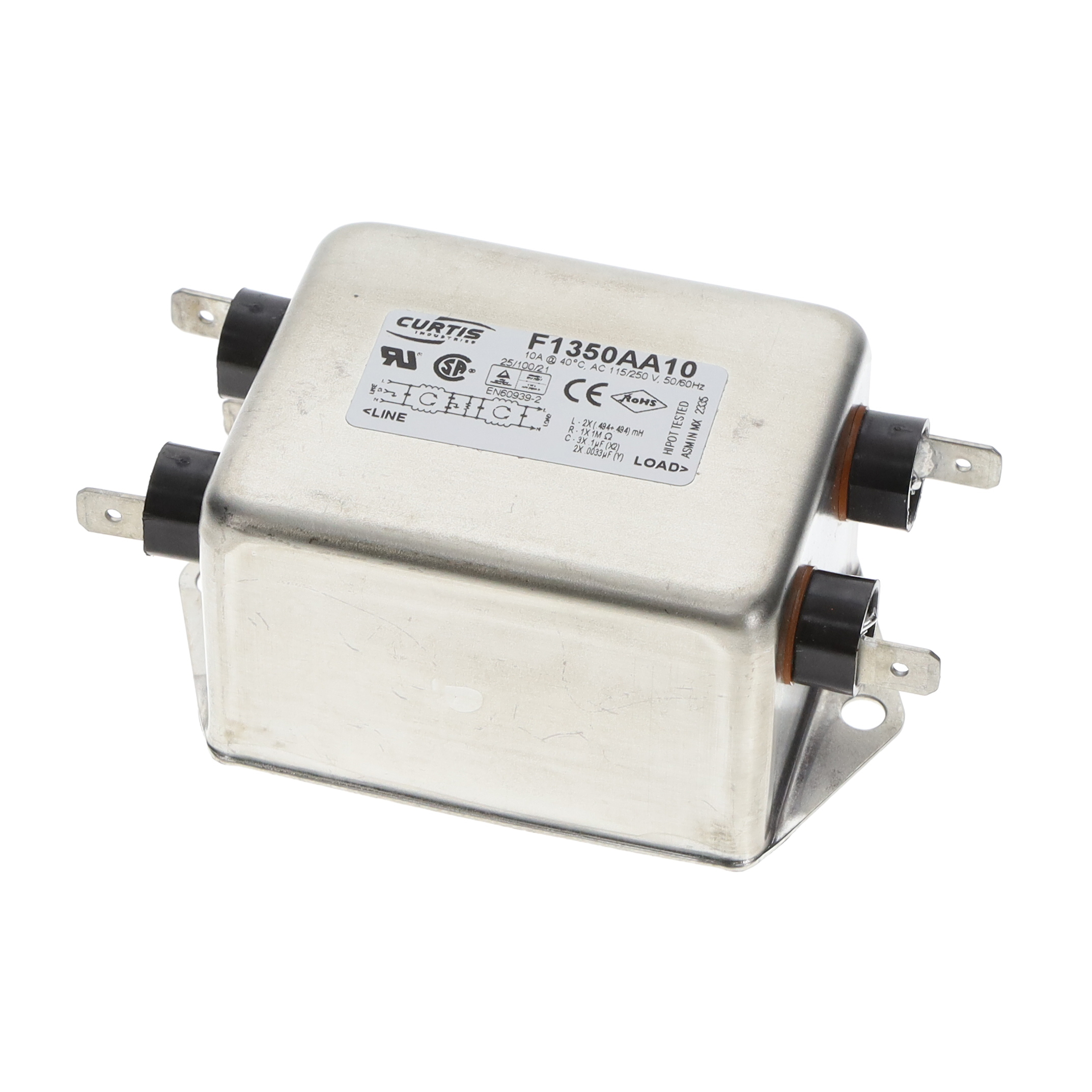

The Curtis Industries F1350AA10 is a single-phase EMC/EMI power line filter module designed for AC mains applications. It operates at a rated voltage of 250VAC and supports a continuous current of 10A at frequencies of 50Hz or 60Hz. The unit features a two-stage filtering architecture to suppress radio frequency interference. Mechanical mounting is achieved via flange mount, and electrical connections are provided through quick connect terminals. The component is supplied in bulk packaging.

Power Line Filter Modules Feature Summary

• Two-stage RFI/EMI suppression architecture
• Quick connect terminal interface
• Flange mount chassis installation

Power Line Filter Modules Applications

• Single-phase AC power line filtering
• Chassis-mounted equipment noise suppression
• Industrial control system EMI reduction

Power Line Filter Modules Procurement Notes

Verify the specific datasheet revision for the F1350AA10 to confirm exact insertion loss curves and impedance characteristics. Ensure the mounting hole dimensions match the chassis design. Confirm that the quick connect terminal spacing aligns with the mating connector specifications before finalizing procurement.

Power Line Filter Modules Selection Notes

Select this component when a two-stage attenuation profile is required for single-phase lines carrying up to 10A. The flange mount style suits panel integration where space efficiency is prioritized over PCB footprint. Verify that the 250VAC rating exceeds the maximum circuit voltage including transients.

Power Line Filter Modules Part Context

This part belongs to the Curtis F1300/F1350 series of RFI filters. The series utilizes standardized mechanical footprints with varying internal capacitance values to achieve different current ratings. The F1350 designation specifically denotes the 10A current capacity variant within this family.

Power Line Filter Modules Replacement Considerations

The F1300AA10 shares similar mechanical dimensions but may differ in electrical performance parameters. Verify datasheet specifications for both parts to ensure functional equivalence before substitution.
