F16-2250

Power Transformers Overview

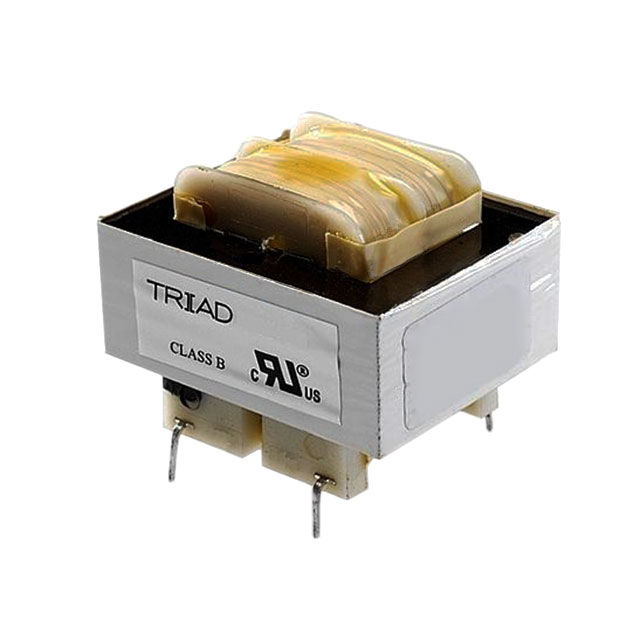

The Triad Magnetics F16-2250 is a board-mount power transformer featuring a split bobbin design for PC board applications. It provides a secondary voltage of 16.0Vct at 2.25A, with a primary input rated for 115V. The unit has a 36VA rating and is UL/cUL certified. It utilizes a laminated core construction and is designed for through-hole or PCB mounting.

Power Transformers Feature Summary

• Split bobbin architecture for versatile PC board integration
• Nonconcentrically wound coils to enhance performance
• UL and cUL certification for safety compliance

Power Transformers Applications

• PC board power supply circuits
• Industrial control systems
• Consumer electronics power stages

Power Transformers Procurement Notes

Verify the specific ordering suffix against official Triad Magnetics documentation to confirm exact electrical ratings and mechanical configuration. Ensure the selected variant matches the required input voltage and current specifications for the target application before finalizing procurement orders.

Power Transformers Selection Notes

Select this component when a compact, certified power transformer is needed for direct PCB integration. The split bobbin design facilitates assembly flexibility. Confirm that the 16Vct output and 2.25A current capacity align with the downstream circuit requirements and thermal management constraints.

Power Transformers Part Context

This part belongs to the Triad Split Pack series, which specializes in nonconcentrically wound transformers optimized for printed circuit board applications. The series offers versatility for various electronic designs requiring reliable isolation and power conversion.

Power Transformers Replacement Considerations

Consult official Triad Magnetics substitution guides for verified equivalent part numbers. Do not assume cross-compatibility with generic transformers due to specific winding and mechanical constraints.
