F1700DD20

Power Line Filter Modules Overview

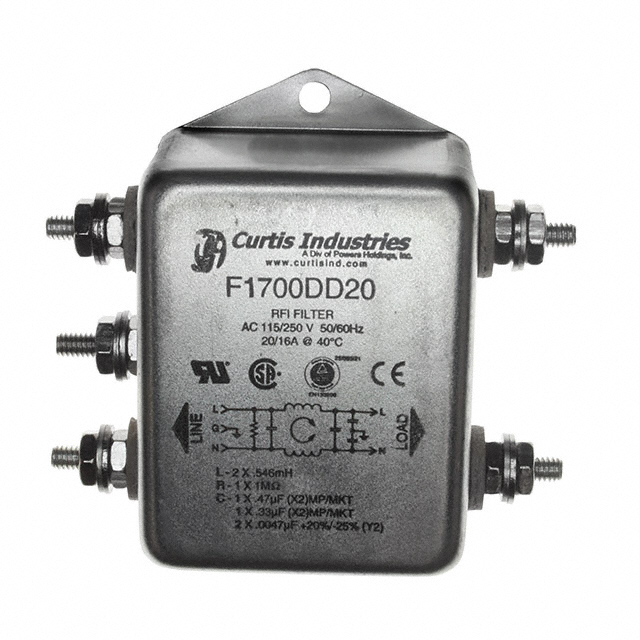

The Curtis Industries F1700DD20 is a single-phase EMI power line filter designed for chassis mounting. It features a threaded post terminal configuration with 8-32 threading. The component is rated for 250VAC and supports a continuous current of 20A at 50/60Hz frequencies. This single-stage filter provides electromagnetic interference suppression for AC power lines.

Power Line Filter Modules Feature Summary

• Single-phase EMI filtering capability
• Chassis mount construction
• Threaded post terminal interface

Power Line Filter Modules Applications

• Industrial machinery control systems
• Commercial equipment power entry
• Electrical enclosures requiring EMI suppression

Power Line Filter Modules Procurement Notes

Verify the specific suffix DD20 against official Curtis Industries documentation to confirm terminal type and rating. Ensure the application voltage does not exceed 250VAC and current requirements are within the 20A limit. Confirm chassis mounting dimensions match the design enclosure. Cross-reference the part number with the manufacturer's current catalog to ensure availability and specification accuracy before procurement.

Power Line Filter Modules Selection Notes

Select this model when a single-phase, chassis-mounted EMI filter is required for 20A applications. The 8-32 threaded post terminals dictate the connection method. Verify that the single-stage attenuation meets the system's EMC requirements. Consider the physical size constraints for chassis installation. Ensure the operating frequency range includes 50/60Hz.

Power Line Filter Modules Part Context

This component belongs to the Curtis Industries F1700 series of RFI power line filters. The series offers various ratings and configurations for single-phase applications. The F1700 series is designed for general-purpose and high-performance filtering in industrial and commercial environments. Curtis Industries manufactures these components for machinery control and electrical systems.

Power Line Filter Modules Replacement Considerations

Consult the official Curtis Industries selection guide for equivalent models within the F1700 or F1799 series. Verify that any substitute matches the 20A rating, 250VAC voltage, and 8-32 threaded post terminal style. Ensure the replacement maintains the same single-phase EMI filtering performance and chassis mounting footprint.
