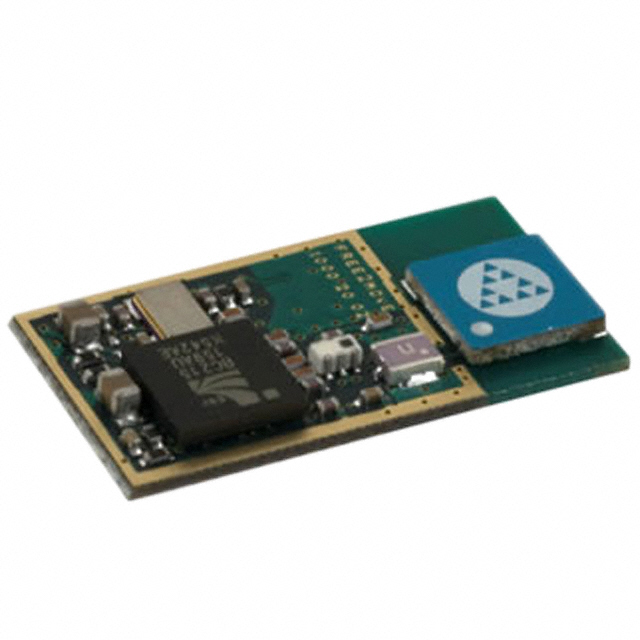

F2M03ALA-S01

Description：RF TXRX MOD BLUETOOTH CHIP SMD
Series：-
Mfr：Free2Move
Package：Tape & Reel (TR)

SKU:dfbdfc96fd8c Category: RF Transceiver Modules and Modems Brand: Free2Move

Consult the customer manager about the wholesale price.

consultation hotline：86-132-6715-2157

email：[email protected]
Contact the product manager for consultation. One-stop consultation is available.

Do you want a lower wholesale price? Please send us your inquiry and we will reply immediately.

Product introduction

F2M03ALA-S01 is listed in the RF Transceiver Modules And Modems range at ChipApex. The manufacturer field lists Free2Move. Its product description is RF TXRX MOD BLUETOOTH CHIP SMD. Review the specifications below when checking this part for your BOM.

RF Transceiver Modules And Modems specifications for F2M03ALA-S01

Description：RF TXRX MOD BLUETOOTH CHIP SMD
Series：-
Mfr：Free2Move
Package：Tape & Reel (TR)
RF Family/Standard：Bluetooth
Protocol：Bluetooth v2.1 +EDR
Modulation：-
Frequency：2.4GHz
Data Rate：3Mbps
Power - Output：4dBm
Sensitivity：-70dBm
Serial Interfaces：I2C, PIO, SPI, UART, USB
Antenna Type：Integrated, Chip
Utilized IC / Part：-
Memory Size：-
Voltage - Supply：2.2V ~ 4.2V
Current - Receiving：-
Current - Transmitting：-
Mounting Type：Surface Mount
Operating Temperature：-40°C ~ 85°C
Package / Case：Module

RF Transceiver Modules And Modems datasheet and documents for F2M03ALA-S01

F2M03ALA-S01

RF Transceiver Modules And Modems Overview

The F2M03ALA-S01 is a Bluetooth v2.1 + EDR transceiver module operating at 2.4GHz with surface mount packaging. It supports data rates up to 3Mbps and features an integrated chip antenna. The module provides a receiver sensitivity of -70dBm and a power output of 4dBm. It operates within a temperature range of -40°C to 85°C and includes I2C, SPI, UART, and USB interfaces.

RF Transceiver Modules And Modems Feature Summary

Supports Bluetooth v2.1 + EDR protocol for reliable wireless communication
Integrates a chip antenna for compact surface mount design
Offers multiple digital interfaces including I2C, SPI, UART, and USB

RF Transceiver Modules And Modems Applications

Industrial wireless sensor networks
Security and access control systems
Automotive telematics and remote information services

RF Transceiver Modules And Modems Procurement Notes

Verify the specific interface configuration and firmware version required for your application before ordering. Confirm that the surface mount package dimensions align with your PCB layout constraints. Ensure compatibility with the host microcontroller's voltage levels and protocol stack requirements.

RF Transceiver Modules And Modems Selection Notes

Select this module when Bluetooth v2.1 + EDR compliance is necessary for legacy or specific industrial standards. Consider the integrated chip antenna if space constraints prevent the use of external antennas. Evaluate the available digital interfaces against the host system's connectivity options to ensure seamless integration.

RF Transceiver Modules And Modems Part Context

Free2Move specializes in industrial-grade wireless technology modules designed to reduce time-to-market. The F2M03ALA-S01 belongs to their portfolio of pre-certified Bluetooth solutions, targeting applications in manufacturing, security, medical devices, and automotive sectors where reliability and rapid deployment are critical.
