F3600T045

Power Line Filter Modules Overview

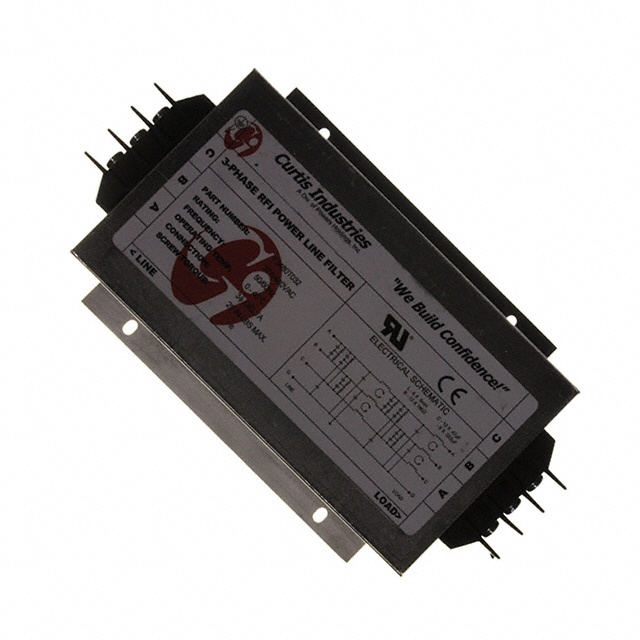

The Curtis Industries F3600T045 is a three-phase (Wye) EMC/EMI power line filter module designed for industrial applications. It supports an output current of 45 A and operates at voltages up to 600 VAC within a 50/60 Hz frequency range. The unit features a two-stage filtering architecture to ensure effective noise suppression. Electrical connections are established via terminal blocks on both the line and load sides, facilitating straightforward integration into existing power distribution systems.

Power Line Filter Modules Feature Summary

• Two-stage filtering architecture for enhanced electromagnetic interference suppression
• Terminal block termination for secure line and load side electrical connections
• Designed specifically for three-phase Wye configuration power systems

Power Line Filter Modules Applications

• Industrial motor drive systems requiring EMI reduction
• Three-phase power distribution panels in manufacturing facilities
• Sensitive electronic equipment protection against line noise

Power Line Filter Modules Procurement Notes

Verify that the specific order matches the F3600T045 part number exactly, as Curtis Industries utilizes suffixes to denote variations in mounting hardware or terminal types. Confirm the voltage rating aligns with your system's 600VAC requirement. Ensure the terminal block configuration meets your wiring standards before finalizing procurement to avoid installation incompatibilities.

Power Line Filter Modules Selection Notes

Select this component when a dedicated two-stage solution is required for three-phase Wye networks operating at 45A. It is suitable for environments where standard single-stage filters fail to meet stringent emission limits. Consider the physical dimensions and flange mount style during mechanical design integration to ensure adequate clearance and thermal management within the enclosure.

Power Line Filter Modules Part Context

This model belongs to Curtis Industries' F3600 series of power line filter modules. The series is engineered for robust performance in harsh industrial environments. The F3600T045 specifically addresses high-current applications, distinguishing itself from lower-amperage variants within the same product family by its 45A continuous current handling capability and specialized terminal interface.

Power Line Filter Modules Replacement Considerations

Direct substitutes must match the 45A current rating, 600VAC voltage class, and three-phase Wye topology. Verify that alternative components offer comparable two-stage attenuation characteristics. Ensure the replacement maintains identical terminal block connection methods to preserve existing wiring infrastructure without modification.
