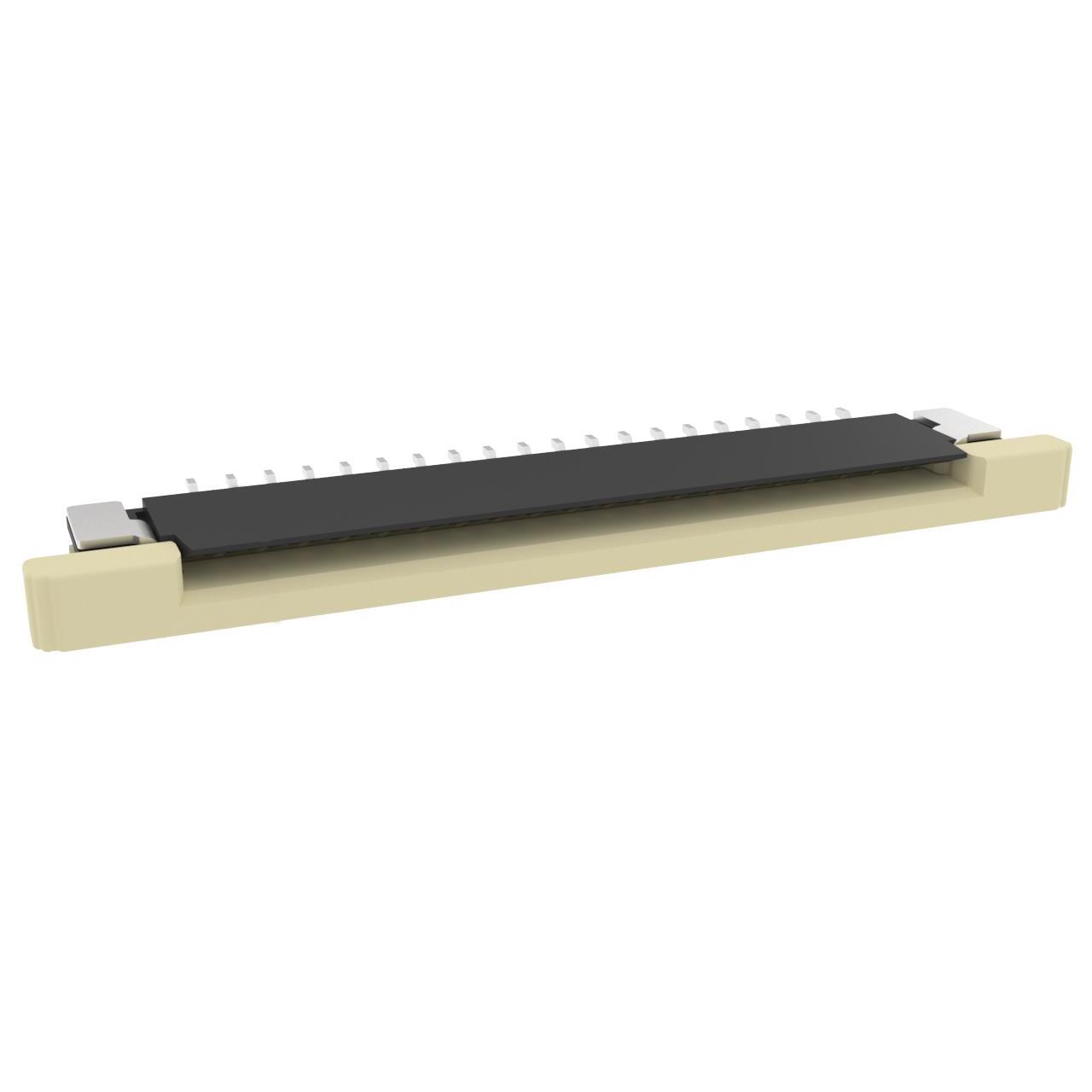

F52R-1A7A1-11020

F52R-1A7A1-11020 is listed in the FFC, FPC (Flat Flexible) Connector Assemblies range at ChipApex. The manufacturer field lists Amphenol ICC (FCI). Its product description is FLEX CONNECTOR, P=1.00MM, H=2.00. Review the specifications below when checking this part for your BOM.

FFC, FPC (Flat Flexible) Connector Assemblies specifications for F52R-1A7A1-11020

• Description：FLEX CONNECTOR, P=1.00MM, H=2.00
• Series：Aorora F52R
• Mfr：Amphenol ICC (FCI)
• Package：Tape & Reel (TR)
• Flat Flex Type：FFC, FPC
• Mounting Type：Surface Mount, Right Angle
• Connector/Contact Type：Contacts, Bottom
• Number of Positions：20
• Pitch：0.039" (1.00mm)
• Termination：Solder
• FFC, FCB Thickness：0.30mm
• Height Above Board：0.079" (2.00mm)
• Locking Feature：Slide Lock
• Cable End Type：Tapered
• Contact Material：Phosphor Bronze
• Contact Finish：Tin
• Housing Material：Liquid Crystal Polymer (LCP), Glass Filled, Halogen Free
• Actuator Material：Polyamide (PA9T), Nylon 9T, Glass Filled, Halogen Free
• Features：Solder Retention, Zero Insertion Force (ZIF)
• Voltage Rating：50V
• Operating Temperature：-40°C ~ 105°C
• Material Flammability Rating：UL94 V-0

FFC, FPC (Flat Flexible) Connector Assemblies datasheet and documents for F52R-1A7A1-11020
