F66WFFSS

Overview

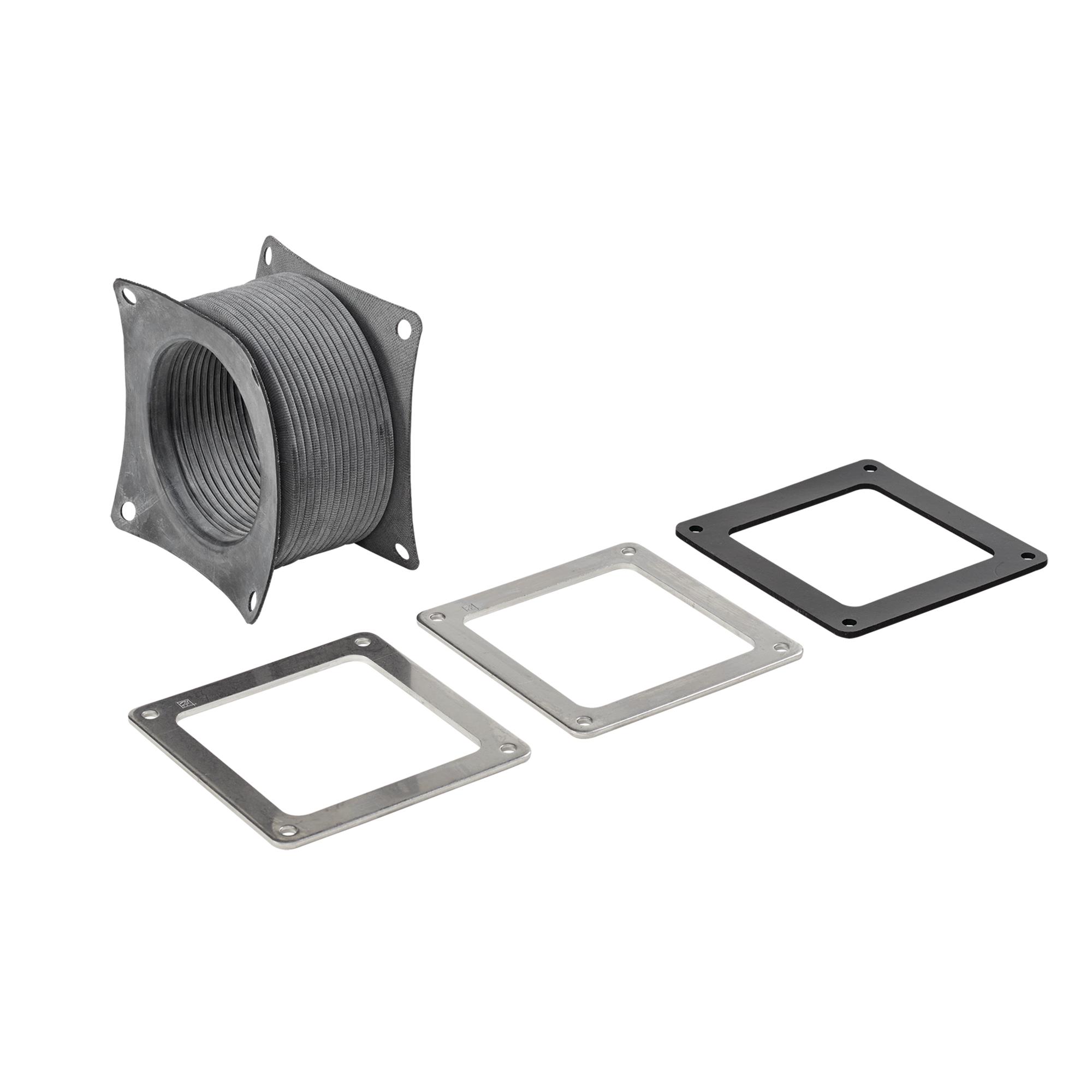

The F66WFFSS is a flexible fitting manufactured by Hoffman Enclosures, Inc., designed for use with wireway systems. Constructed from rubber, this component measures 6.00 inches by 6.00 inches and is unpainted. It serves as a feed-through fitting intended to isolate wireway runs from shock and vibration or to compensate for misalignment. The product is rated for NEMA Type 12 enclosures and features dust-resistant properties.

Feature Summary

• Provides isolation from shock and vibration for connected wireway runs
• Compensates for misalignment between machine or control stations
• Allows connection at odd angles up to 90 degrees

Applications

• Isolating wireway runs from mechanical shock and vibration
• Connecting machines or control stations to wireway runs requiring movement
• Compensating for alignment issues in industrial enclosures

Procurement Notes

Verify the material specification matches the required application environment, as sources indicate rubber construction while some listings reference stainless steel variants within the same series. Confirm dimensional compatibility with the specific wireway system being installed. Ensure the selected fitting meets the necessary NEMA Type 12 rating for the intended enclosure setup.

Selection Notes

Select this component when angular adjustment or movement compensation is required between fixed wireways and moving equipment. The 6x6 inch size must align with the existing wireway dimensions. Consider the rubber material properties for environmental resistance and flexibility needs compared to rigid alternatives.

Part Context

This part belongs to the F66 series of accessories from Hoffman Enclosures, Inc. It functions as a specialized connector within electrical enclosure systems, specifically addressing dynamic installation requirements where rigid connections are unsuitable due to potential movement or alignment discrepancies.

Replacement Considerations

No public confirmed substitute part numbers are available in the provided documentation.
