F8890TXGV

Overview

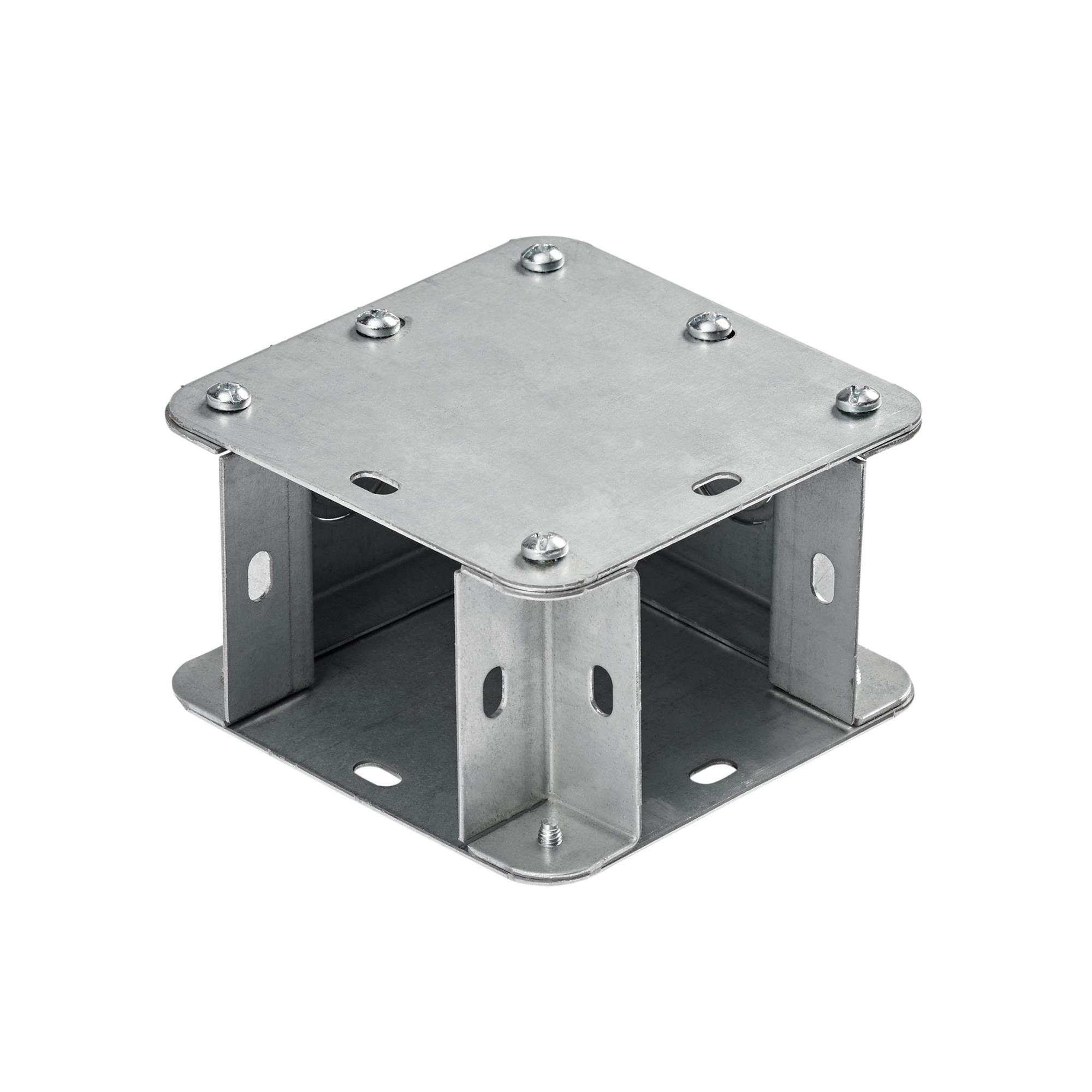

The Hoffman Enclosures F8890TXGV is a galvanized steel cable management fitting designed for indoor use within the Lay-In series. It functions as an 8-inch by 8-inch cross-type connector, allowing for the intersection of multiple wireway sections. The component features a 90-degree elbow configuration and includes two closure plates to maintain enclosure integrity. Constructed from mild steel with a galvanized finish, it provides structural support and organization for electrical cabling in industrial environments.

Feature Summary

• Galvanized steel construction for corrosion resistance
• Cross-type design for multi-directional cable routing
• Includes closure plates for secure installation

Applications

• Indoor electrical cable management systems
• Industrial wireway intersections
• Combining multiple cable trunking sections

Procurement Notes

Verify that the required application environment is strictly indoor, as this component is not rated for outdoor exposure. Confirm that the cable management system utilizes the compatible Lay-In series dimensions. Ensure that the galvanized finish meets the specific corrosion requirements of the installation site. Check for inclusion of the specified closure plates during receipt inspection.

Selection Notes

Select this part when a four-way connection point is required for 8x8 inch wireways. Choose this model over standard elbows when branching in multiple directions is necessary. Consider the galvanized finish for general industrial indoor applications where high humidity or chemical exposure is not extreme. Verify compatibility with existing Hoffman Lay-In series components before procurement.

Part Context

This component belongs to the Hoffman Lay-In series of cable management products. It is manufactured by Hoffman Enclosures, Inc., now part of nVent. The product line focuses on modular solutions for organizing electrical wiring in control panels and industrial machinery. This specific fitting facilitates complex routing layouts without requiring field fabrication.

Replacement Considerations

No public confirmed substitute part numbers are available for this specific component.
