F88G45E

Overview

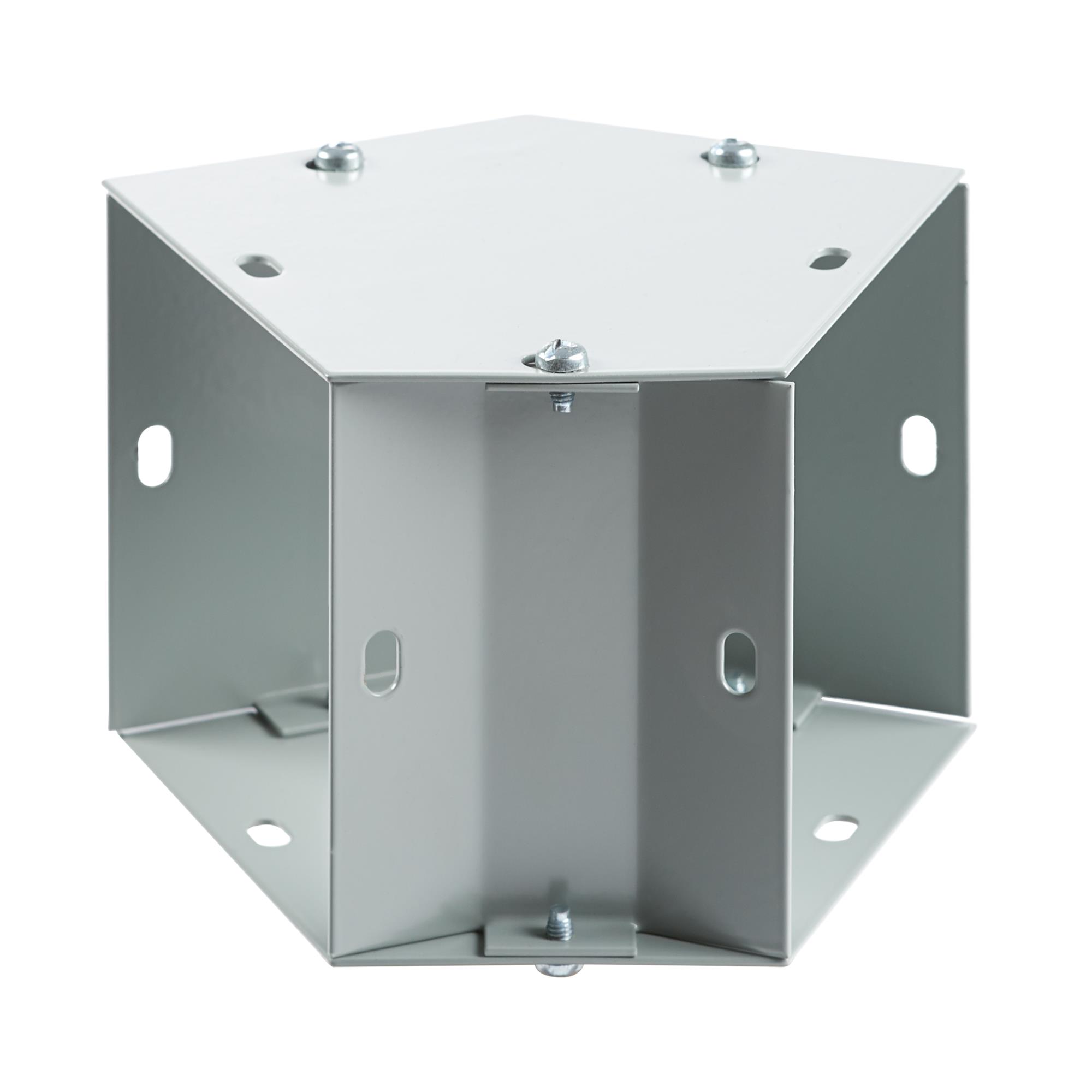

The F88G45E is a 45-degree elbow fitting manufactured by nVent HOFFMAN. Constructed from painted steel with a gray finish, this component is designed for use in wireway systems. It features an 8.00-inch height and an 8.00-inch width, adhering to NEMA Type 1 standards for flat-cover applications. The unit utilizes a lay-in design, facilitating installation within continuous run configurations that require directional changes.

Feature Summary

• Provides a 45-degree directional change for wireway runs
• Constructed from painted steel with a gray finish
• Designed for lay-in installation methods

Applications

• Continuous wireway runs requiring 45-degree turns
• NEMA Type 1 flat-cover wireway systems
• Industrial electrical infrastructure routing

Procurement Notes

Verify the specific dimensional requirements of the existing wireway system to ensure compatibility with the 8x8 inch profile. Confirm that the application environment aligns with NEMA Type 1 ratings, which protect against falling debris and limited ingress of water but are not suitable for harsh outdoor or submerged conditions. Ensure the gray painted steel finish meets aesthetic or corrosion resistance needs for the intended indoor installation site.

Selection Notes

Select this component when a 45-degree transition is required in an 8x8 inch wireway layout. The painted steel construction offers standard durability for indoor environments. Consider the lay-in design for ease of assembly without complex fastening tools. Verify that the NEMA Type 1 rating is sufficient for the specific environmental hazards present at the installation location.

Part Context

This part belongs to the Hoffman Enclosures wireway accessories family, specifically elbows used for routing electrical conduits and cables. It complements straight sections and other fittings to create structured pathways. The product is categorized under industrial enclosures and mounting hardware, supporting organized electrical distribution networks in commercial and industrial facilities.

Replacement Considerations

Public confirmed substitute part numbers are not available in the provided documentation.
