F88L120

Overview

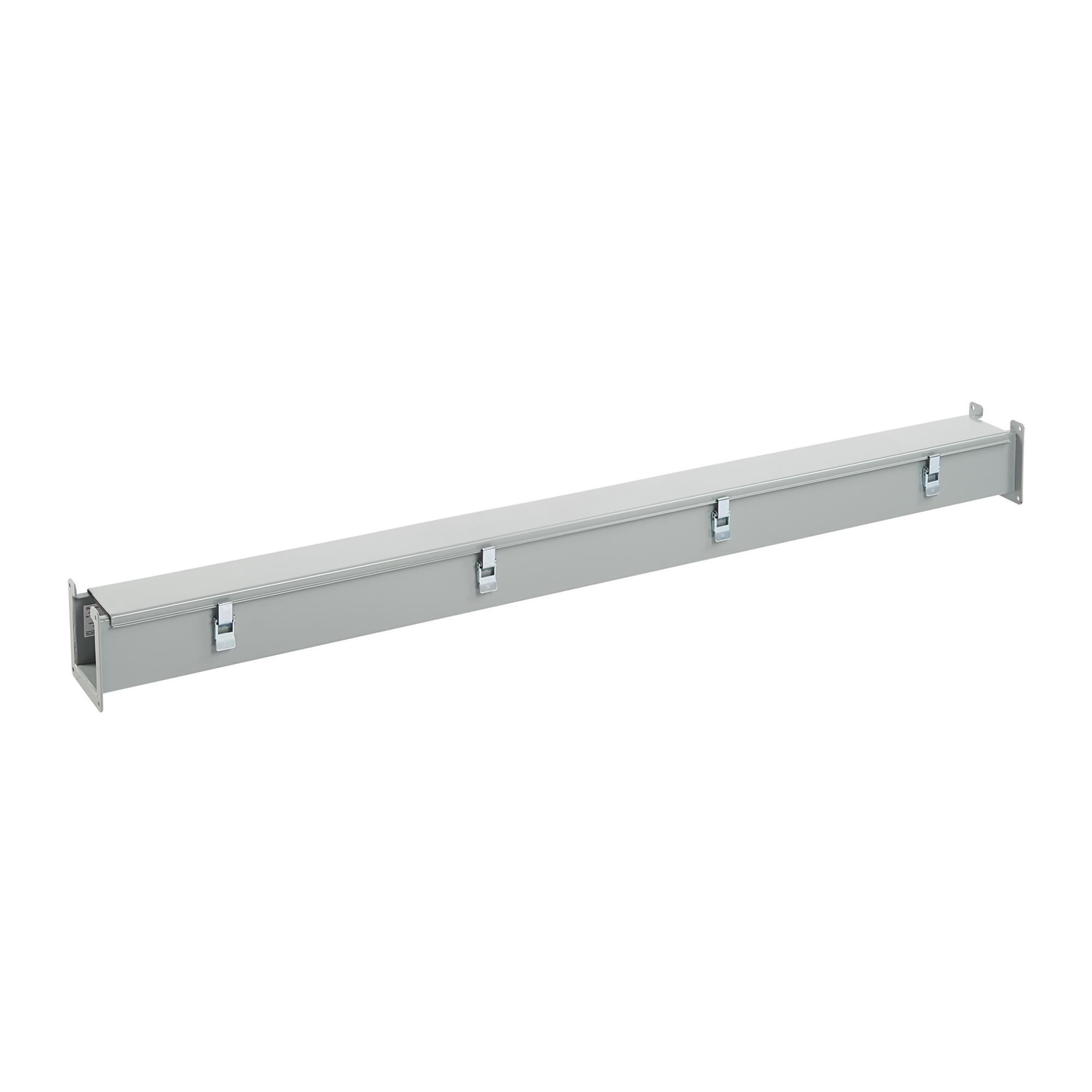

The Hoffman Enclosures F88L120 is a straight section of lay-in wireway designed for cable management. It measures 8.00 inches by 8.00 inches in cross-section and 120.00 inches in length. Constructed from steel, the body and cover are 14 gauge, while the end flanges utilize 10 gauge steel. The unit features an ANSI 61 gray polyester powder paint finish. It is classified as NEMA Type 12, providing protection against dust, falling dirt, and non-corrosive liquids.

Feature Summary

• Continuous welding with ground smooth seams ensures structural integrity and safety.
• Lay-in design allows for easy cable installation without removing covers.
• Smooth, rounded edges on all sections prevent wire insulation damage.
• Oil-resistant gasket provides enhanced environmental sealing.

Applications

• Industrial wiring protection against oil and contaminants
• Cable routing in indoor industrial environments
• Straight section integration within wireway systems

Procurement Notes

Verify that the required NEMA Type 12 rating matches the application environment. Confirm that the 14-gauge steel construction meets mechanical load requirements. Ensure compatibility with other Hoffman lay-in fittings regarding dimensions and mounting methods. Check for specific surface finish requirements if chemical resistance beyond standard oil resistance is needed.

Selection Notes

Select this model when a straight run of 120 inches is required within an 8x8 inch wireway system. Consider the lay-in feature for maintenance accessibility. Evaluate the need for additional fittings such as elbows or tees to complete the routing path. Verify that the steel construction is suitable for the ambient temperature and humidity conditions.

Part Context

This component belongs to the Hoffman lay-in wireway family, which is widely used in industrial settings for organized cable management. The F88L120 serves as a linear segment connecting various fittings. Its design prioritizes ease of use and durability in harsh environments where exposure to oils and particulates is common.

Replacement Considerations

No public confirmed substitute part numbers are available in the provided documentation. Ensure any alternative maintains identical 8x8x120 inch dimensions and NEMA Type 12 rating.
