FC-L03D2

Power Line Filter Modules Overview

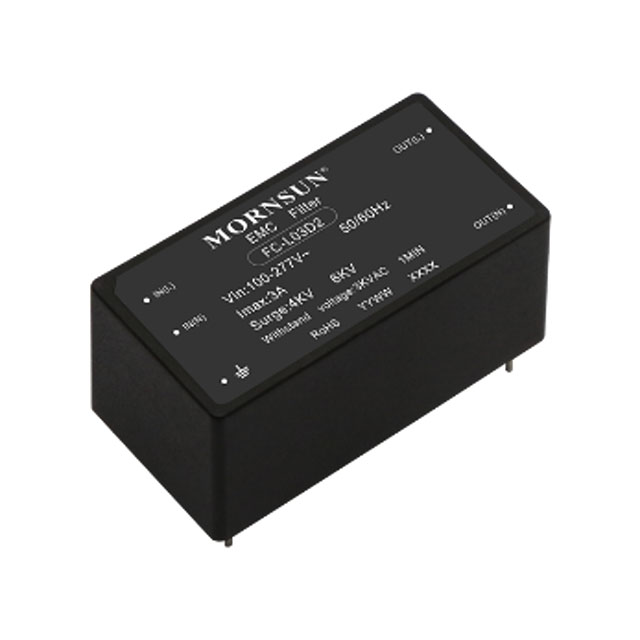

The FC-L03D2 is a single-phase EMC/EMI line filter manufactured by Mornsun America, LLC. Designed for general-purpose industrial applications, it protects equipment from electromagnetic interference. The component operates with a maximum voltage of 430V DC or 230V AC and supports a current rating of 3A. It utilizes a through-hole mounting style within a DIP package. The unit functions effectively across an operating temperature range of -40°C to +85°C.

Power Line Filter Modules Feature Summary

• Provides electromagnetic compatibility filtering for power lines
• Protects connected equipment from external interference
• Suitable for general-purpose industrial environments

Power Line Filter Modules Applications

• Industrial machinery protection
• General-purpose electronic equipment filtering
• Power supply input stages

Power Line Filter Modules Procurement Notes

Verify the specific part number FC-L03D2 against official Mornsun documentation to confirm electrical ratings and physical dimensions. Ensure the selected component matches the required voltage and current specifications for the intended circuit application before procurement.

Power Line Filter Modules Selection Notes

Select this filter when single-phase EMI suppression is required for industrial systems. Confirm that the 3A current rating and 430V DC / 230V AC voltage limits align with the system's operational parameters. Verify through-hole mounting compatibility with the target PCB design.

Power Line Filter Modules Part Context

This component belongs to the Mornsun line filter series, which specializes in electromagnetic compatibility solutions. Mornsun focuses on magneto-electric isolation technology and develops various power conversion products. The FC-L03D2 serves as a protective interface for sensitive electronics in noisy environments.

Power Line Filter Modules Replacement Considerations

Consult official Mornsun catalogs for verified substitute models. Ensure any replacement maintains identical voltage, current, and mounting specifications to guarantee system compatibility.
