FC100V10A-G

Power Line Filter Modules Overview

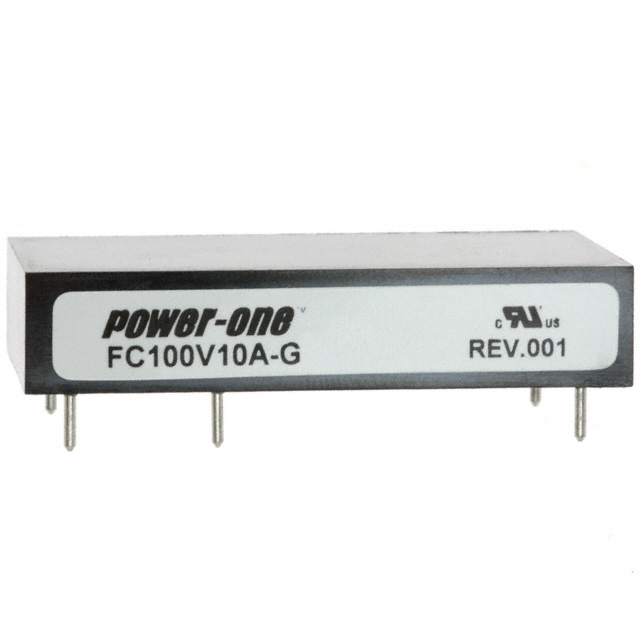

The FC100V10A-G is a single-phase EMC/EMI line filter manufactured by Bel Power Solutions. It is designed for AC input applications with a rated current of 10 A and a maximum DC voltage rating of 100 V. The device features a single-stage configuration and utilizes through-hole PC pin termination for mounting. It operates within a temperature range of -40°C to 100°C. The component is classified as a passive element under the FC series, intended for general-purpose filtering applications.

Power Line Filter Modules Feature Summary

• Single-stage electromagnetic interference suppression
• Through-hole printed circuit board pin termination
• Wide operating temperature capability

Power Line Filter Modules Applications

• General-purpose electronic equipment filtering
• Industrial control systems
• Power supply input stages

Power Line Filter Modules Procurement Notes

Verify the specific suffix designation when ordering, as variants such as FC100V10A-G may exist with distinct isolation or certification attributes. Confirm that the single-stage architecture meets the specific noise attenuation requirements of the target application. Ensure the through-hole mounting style aligns with the PCB layout design. Check for any updated lifecycle status notifications from the manufacturer regarding availability.

Power Line Filter Modules Selection Notes

Select this component when a single-phase, 10 A rated filter is required for low-voltage DC bus protection or AC line conditioning. The single-stage design offers a compact solution for basic EMI suppression needs. Consider the thermal performance limits if the ambient environment approaches the upper operational boundary. Verify compatibility with the system's grounding scheme and physical space constraints for through-hole installation.

Power Line Filter Modules Part Context

This component belongs to the FC series of line filters from Bel Power Solutions. It serves as a passive filtering element within power distribution networks. The series provides standardized solutions for electromagnetic compatibility in various industrial and commercial settings. The specific model addresses requirements for moderate current handling with robust thermal stability.

Power Line Filter Modules Replacement Considerations

Publicly confirmed substitute part numbers are not available in the provided documentation. Evaluate alternative single-stage filters from the same manufacturer only after verifying identical electrical ratings and mechanical footprint compatibility.
