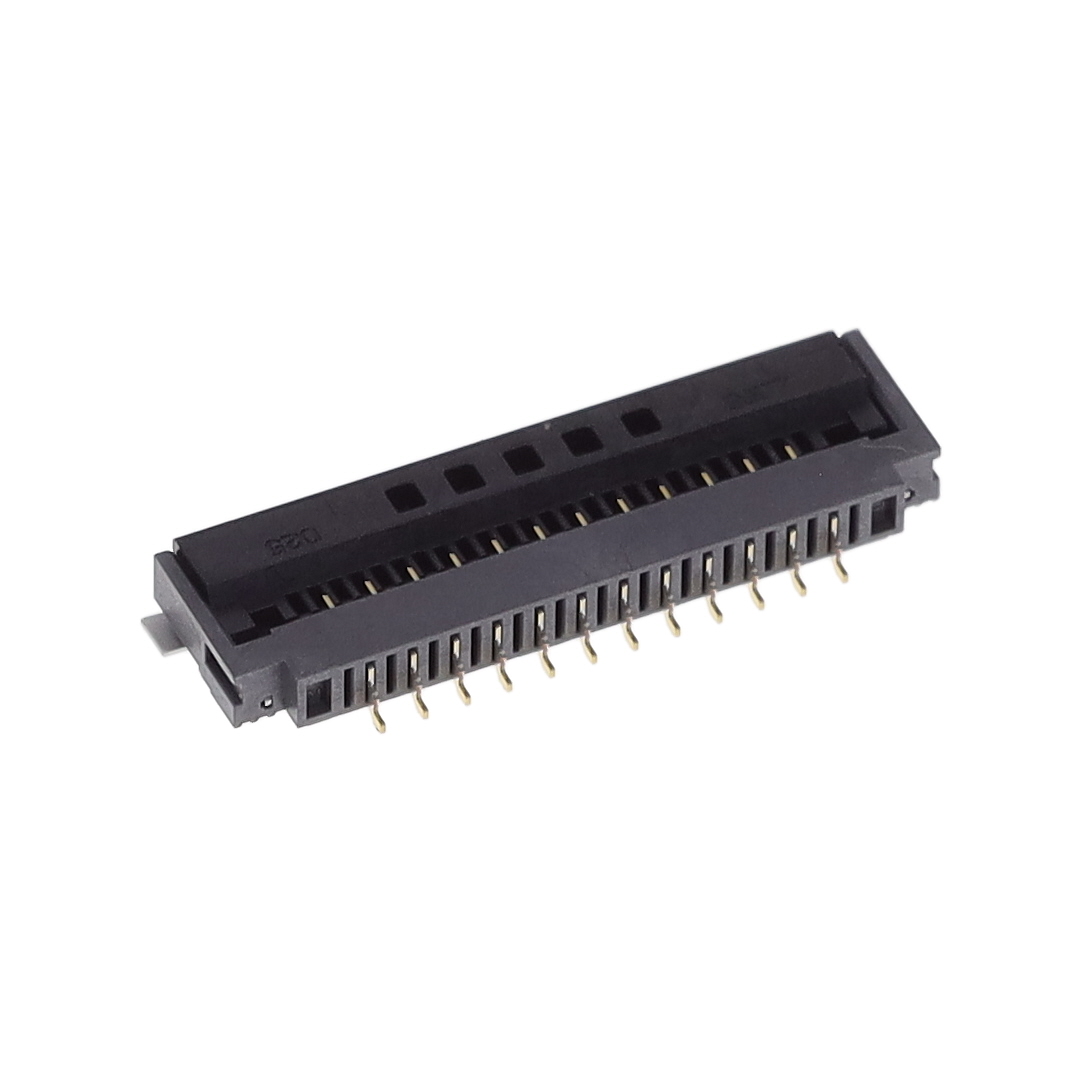

FH52C-12S-1SH is listed in the FFC, FPC (Flat Flexible) Connector Assemblies range at ChipApex. The manufacturer field lists Hirose Electric Co Ltd. Its product description is RECEPTACLE, AC 50.0V, DC 50.0V,. Review the specifications below when checking this part for your BOM.
FFC, FPC (Flat Flexible) Connector Assemblies specifications for FH52C-12S-1SH
- Description：RECEPTACLE, AC 50.0V, DC 50.0V,
- Series：FH52C
- Mfr：Hirose Electric Co Ltd
- Package：Tape & Reel (TR),Cut Tape (CT)
- Flat Flex Type：FFC, FPC
- Mounting Type：Surface Mount, Right Angle
- Connector/Contact Type：Contacts, Bottom
- Number of Positions：12
- Pitch：0.039" (1.00mm)
- Termination：Solder
- FFC, FCB Thickness：0.30mm
- Height Above Board：0.079" (2.00mm)
- Locking Feature：Flip Lock
- Cable End Type：Tabbed, Tapered
- Contact Material：Copper Alloy
- Contact Finish：Gold
- Housing Material：Liquid Crystal Polymer (LCP)
- Actuator Material：Liquid Crystal Polymer (LCP)
- Features：Solder Retention
- Voltage Rating：50V
- Operating Temperature：-40°C ~ 105°C
- Material Flammability Rating：-
FFC, FPC (Flat Flexible) Connector Assemblies datasheet and documents for FH52C-12S-1SH
