FHSMM01A1FR

Power Line Filter Modules Overview

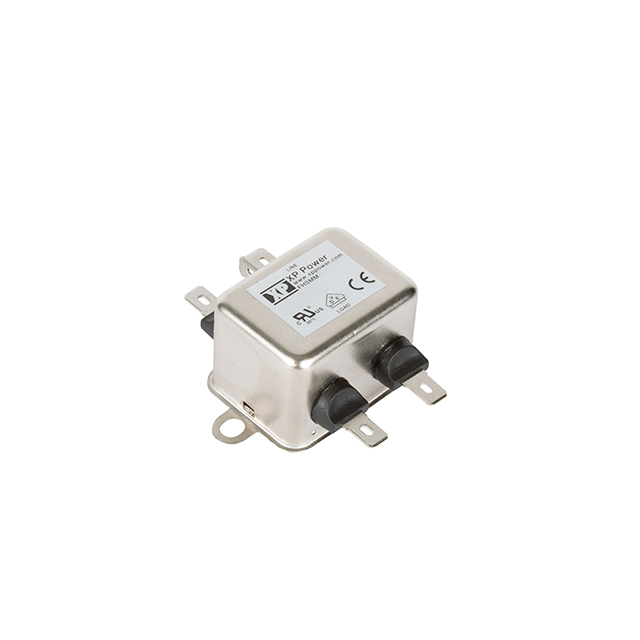

The XP Power FHSMM01A1FR is a single-phase EMI/EMC power line filter designed for chassis mounting. It supports an operating frequency range of 0 Hz to 400 Hz with a maximum current rating of 1 A and a voltage rating of 250 VAC. The component features quick connect terminals and includes internal capacitance of 100 nF and inductance of 800 uH. It operates within a temperature range of -40°C to +110°C, has a leakage current of 5 uA, and measures 44 mm in length, 24 mm in width, and 17.5 mm in height.

Power Line Filter Modules Feature Summary

• Provides electromagnetic interference suppression for sensitive electronic equipment
• Designed for secure chassis mounting applications
• Utilizes quick connect terminal interfaces for simplified circuit integration

Power Line Filter Modules Applications

• Information Technology Equipment (ITE)
• Medical devices
• Industrial control systems

Power Line Filter Modules Procurement Notes

Verify the specific part number against official manufacturer documentation to ensure compliance with required electrical ratings and physical dimensions. Confirm that the quick connect terminal type matches the intended PCB or wire harness interface. Check for any updated regulatory certifications relevant to the target market before finalizing procurement specifications.

Power Line Filter Modules Selection Notes

Select this component when a low leakage current specification is critical for safety isolation in medical or sensitive applications. The single-stage design offers a compact footprint suitable for space-constrained chassis installations. Ensure the operating environment remains within the specified thermal limits to maintain filter performance and longevity.

Power Line Filter Modules Part Context

This model belongs to the FHSM series from XP Power, which specializes in single-phase EMI filters for AC power lines. The series is engineered to meet stringent EMC standards for commercial and industrial electronics. It serves as a noise suppression solution for power inputs in regulated environments requiring reliable signal integrity.

Power Line Filter Modules Replacement Considerations

Consult official XP Power documentation for verified substitute part numbers within the FHSM series or compatible families. Ensure any replacement maintains identical current, voltage, and dimensional specifications to preserve mechanical fit and electrical performance.
