FL2D-50-562

$1.32

Description：CMC 5.6MH 5A 2LN TH
Series：FL2D-50-xxx
Mfr：Mornsun America, LLC
Package：Tray

SKU:a826ee784213 Category: Common Mode Chokes Brand: Mornsun America, LLC

Consult the customer manager about the wholesale price.

consultation hotline：86-132-6715-2157

email：[email protected]
Contact the product manager for consultation. One-stop consultation is available.

Do you want a lower wholesale price? Please send us your inquiry and we will reply immediately.

Product introduction

FL2D-50-562 is listed in the Common Mode Chokes range at ChipApex. The manufacturer field lists Mornsun America, LLC. Its product description is CMC 5.6MH 5A 2LN TH. Review the specifications below when checking this part for your BOM.

Common Mode Chokes specifications for FL2D-50-562

Description：CMC 5.6MH 5A 2LN TH
Series：FL2D-50-xxx
Mfr：Mornsun America, LLC
Package：Tray
Filter Type：Power Line
Number of Lines：2
Current Rating (Max)：5A
DC Resistance (DCR) (Max)：47mOhm (Typ)
Voltage Rating - DC：2000V (2kV)
Voltage Rating - AC：1500V (1.5kV)
Operating Temperature：-40°C ~ 125°C
Ratings：-
Approval Agency：-
Features：-
Mounting Type：Through Hole
Size / Dimension：0.906" L x 0.520" W (23.00mm x 13.20mm)
Height (Max)：0.906" (23.00mm)
Package / Case：Vertical, 4 PC Pin
Inductance @ Frequency：5.6 mH @ 1 kHz
Impedance @ Frequency：-

Common Mode Chokes datasheet and documents for FL2D-50-562

FL2D-50-562

Common Mode Chokes Overview

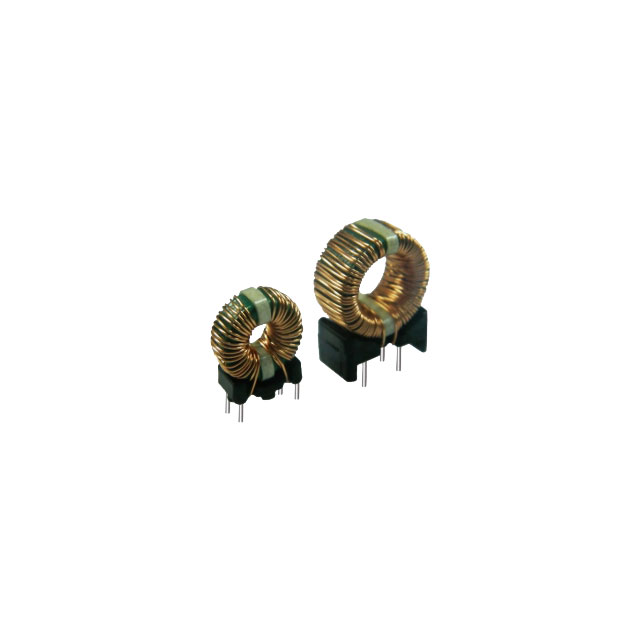

The FL2D-50-562 is a two-line common mode choke manufactured by Mornsun America, LLC. It features an inductance of 5.6 mH at 1 kHz and supports a current rating of 5 A with a typical DC resistance of 47 mOhm. The component utilizes through-hole mounting technology and is housed in a package designated as FL2D-50-562.

Common Mode Chokes Feature Summary

Provides common mode noise suppression for dual-line circuits
Supports high current handling capability up to 5 A
Utilizes through-hole installation for mechanical stability

Common Mode Chokes Applications

Power supply input filtering
EMI suppression in AC/DC converters
Signal line noise reduction in industrial equipment

Common Mode Chokes Procurement Notes

Verify the specific inductance tolerance and current saturation characteristics against the official datasheet before integration. Confirm that the through-hole footprint matches the PCB layout requirements. Ensure the operating temperature range aligns with the system's thermal environment. Cross-reference the manufacturer part number to avoid confusion with similar series components.

Common Mode Chokes Selection Notes

Select this component when designing circuits requiring robust common mode noise attenuation for lines carrying up to 5 A. The low DC resistance minimizes power loss in the signal path. Consider the physical size constraints associated with through-hole mounting versus surface mount alternatives. Evaluate the inductance value relative to the target noise frequency spectrum for optimal filtering performance.

Common Mode Chokes Part Context

This component belongs to the FL2D-50 series of common mode chokes from Mornsun America, LLC. These devices are engineered for electromagnetic interference suppression in power and data lines. The series offers various inductance values tailored for different current ratings and noise profiles, ensuring compatibility with diverse electronic system architectures.
