FL75L07A

Power Line Filter Modules Overview

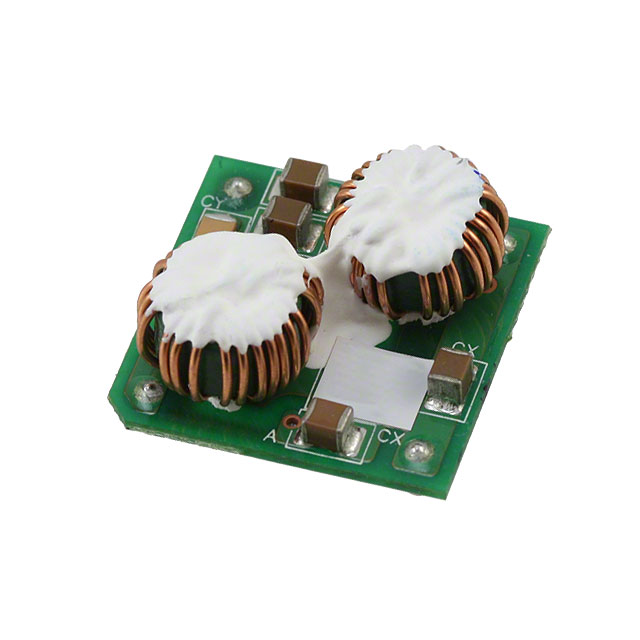

The FL75L07A is a single-phase AC power line filter module manufactured by Delta Electronics. It features a rated voltage of 75 VAC and a current rating of 7 A. Designed for surface mount technology (SMT), it utilizes SMD tab termination styles. The component operates within a temperature range of -40°C to 115°C. It holds safety approvals from cUL, UL, and VDE agencies. The unit is classified as an EMC/EMI line filter suitable for DC input applications up to 75Vdc.

Power Line Filter Modules Feature Summary

• Provides electromagnetic interference suppression for power lines
• Supports surface mount assembly for automated manufacturing
• Complies with international safety standards including UL and VDE

Power Line Filter Modules Applications

• DC-DC converter input filtering
• Power supply unit EMI reduction
• Electronic equipment noise suppression

Power Line Filter Modules Procurement Notes

Verify the specific datasheet version and approval agency listings before integration. Confirm that the surface mount footprint matches the design layout. Ensure the operating temperature range meets system requirements. Check for any recent product change notifications or end-of-life notices from the manufacturer.

Power Line Filter Modules Selection Notes

Select this component when surface mount implementation is required for power line filtering. The 7A rating suits moderate current applications. Verify compatibility with 75VAC systems. Consider thermal management capabilities given the high maximum operating temperature. Ensure PCB layout supports SMD tab connections.

Power Line Filter Modules Part Context

This part belongs to Delta Electronics' power line filter series. It serves as an EMI suppression device for electronic circuits. The module integrates filtering components into a compact surface mount package. It addresses regulatory compliance needs for conducted emissions in power electronics.

Power Line Filter Modules Replacement Considerations

Consult official substitution lists for verified equivalents. Generic replacements may not match safety certifications or electrical characteristics.
