FLLD3800APZI1

Power Line Filter Modules Overview

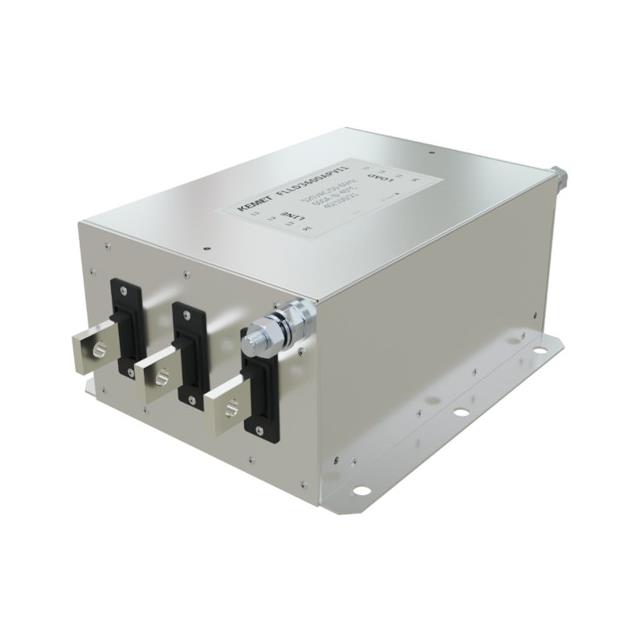

The KEMET FLLD3800APZI1 is a three-phase EMI/EMC power line filter designed for high-current industrial applications. It features a voltage rating of 690 VAC and a current capacity of 800 A, with a leakage current of 5 mA. The unit supports operation at 50 Hz and 60 Hz frequencies within an ambient temperature range of -40 °C to +100 °C. Constructed for chassis mounting, it utilizes terminal block termination for secure electrical connections.

Power Line Filter Modules Feature Summary

• Engineered for high-capacity three-phase power filtering in demanding industrial environments
• Provides robust electromagnetic interference suppression for sensitive electronic loads
• Features durable chassis-mount construction suitable for heavy-duty infrastructure

Power Line Filter Modules Applications

• Industrial motor drive systems requiring significant current handling
• Large-scale renewable energy conversion equipment
• High-power manufacturing automation machinery

Power Line Filter Modules Procurement Notes

Verify the specific part number against official KEMET documentation to confirm exact ratings. Ensure compatibility with existing chassis mounting hardware and terminal block specifications. Confirm that the 800 A current rating aligns with system requirements. Check for any updated compliance certifications relevant to your region before finalizing procurement decisions.

Power Line Filter Modules Selection Notes

Select this component when designing systems requiring high-current three-phase filtering. Evaluate physical dimensions to ensure adequate clearance for chassis installation. Consider thermal management strategies given the high current load and operating temperature limits. Verify input and output connection methods match the terminal block configuration.

Power Line Filter Modules Part Context

This component belongs to the FLLD series of power line filters manufactured by KEMET. The series is characterized by high-performance EMI suppression capabilities tailored for industrial power conditioning. These filters are integral to maintaining power quality in facilities utilizing large electrical machinery and sensitive control systems.

Power Line Filter Modules Replacement Considerations

Consult official KEMET substitution guides for verified alternatives. Ensure any replacement maintains identical voltage, current, and mounting specifications.
