FLLE2400APVI1

Power Line Filter Modules Overview

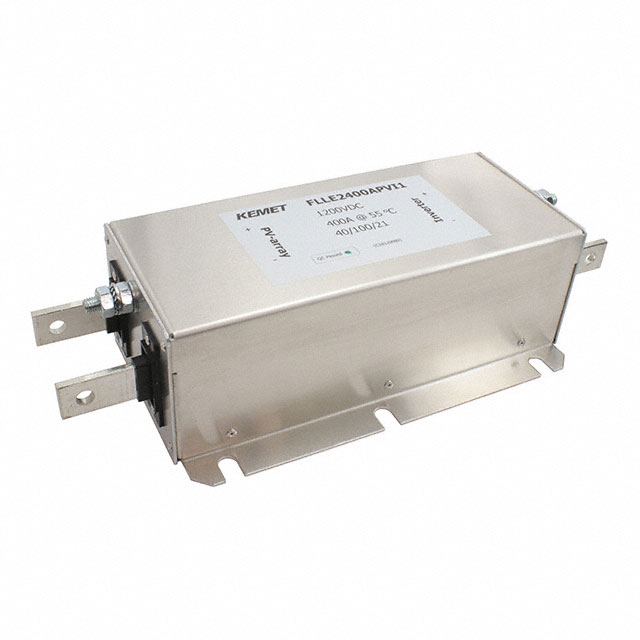

The KEMET FLLE2400APVI1 is a single-phase DC power line EMI filter module designed for high-current photovoltaic applications. It features a rated voltage of 1.2 kV and a continuous current capacity of 400 A. The unit measures 300 mm in length, 130 mm in width, and 100 mm in height. It provides attenuation for high-frequency noise to protect PV panel performance. The component holds UL, CSA, and EN approvals.

Power Line Filter Modules Feature Summary

• Single-stage filtering architecture for DC power lines
• High current handling capability up to 400 A
• Engineered to attenuate high-frequency noise in photovoltaic systems

Power Line Filter Modules Applications

• Photovoltaic panel protection
• DC power line filtering
• High-voltage DC system noise suppression

Power Line Filter Modules Procurement Notes

Verify the exact suffix against official KEMET documentation, as variants like FLLE2400APXI1 exist with identical ratings but different physical dimensions. Confirm lifecycle status, as this specific part number is listed as obsolete in some distributor databases. Ensure compatibility with 1.2 kV and 400 A system requirements before procurement.

Power Line Filter Modules Selection Notes

Select this module for applications requiring robust single-phase DC filtering at 1.2 kV. Compare physical dimensions carefully against available space, noting that similar model numbers may differ in size. Verify that the 400 A current rating aligns with the maximum expected load. Check for alternative active replacements if the obsolete status impacts long-term supply.

Power Line Filter Modules Part Context

This component belongs to the KEMET FLLE2-PV series of EMI filters. These modules are specifically engineered for photovoltaic energy generation systems. They provide essential electromagnetic compatibility by suppressing conducted emissions on DC links. The series supports high-voltage and high-current industrial solar applications.

Power Line Filter Modules Replacement Considerations

Public confirmed substitute part numbers: FLLE2400APXI1.
