FLTR100V20Z

Power Line Filter Modules Overview

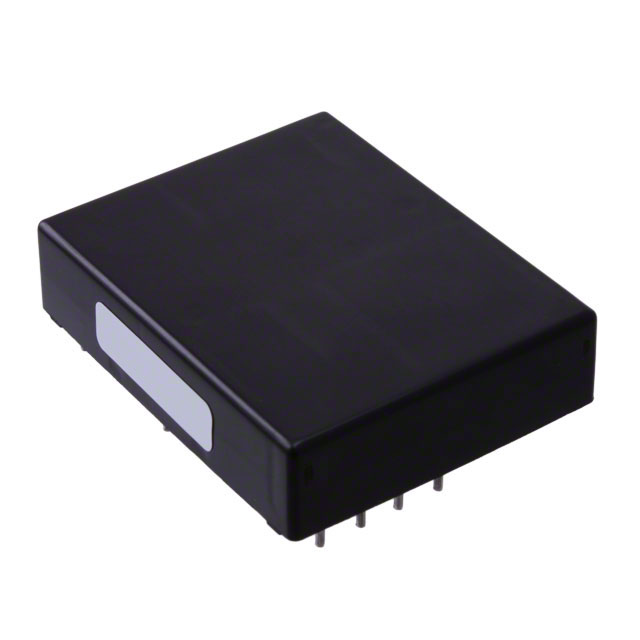

The FLTR100V20Z is a single-phase EMC/EMI power line filter manufactured by OmniOn Power. It features a through-hole mounting style and is rated for a maximum voltage of 75 VDC with a current rating of 20 A. The component utilizes a three-pin PCB pin configuration designed for direct integration into power input stages. It operates within an ambient temperature range of -40°C to +100°C.

Power Line Filter Modules Feature Summary

• Provides single-phase EMI suppression for power lines
• Supports through-hole installation on printed circuit boards
• Certified for international safety standards including CE, CSA, UL, and VDE

Power Line Filter Modules Applications

• General purpose industrial equipment power inputs
• Power supply unit input filtering
• Electronic systems requiring EMI noise reduction

Power Line Filter Modules Procurement Notes

Verify the specific datasheet version prior to ordering to ensure compatibility with system requirements. Confirm that the 75 VDC voltage rating and 20 A current capacity align with the target application's electrical specifications. Ensure the through-hole footprint matches the design layout. Check for any recent regulatory updates regarding the listed certifications.

Power Line Filter Modules Selection Notes

Select this component when a robust, certified EMI filter is required for high-current DC applications up to 20 A. The wide operating temperature range supports use in demanding environments. Consider the physical dimensions and pin configuration during the mechanical design phase to ensure proper board space allocation and connection reliability.

Power Line Filter Modules Part Context

This component belongs to the power line filter category from OmniOn Power. It serves as a passive filtering element to mitigate electromagnetic interference in DC power circuits. Unlike active converters, it focuses on signal integrity and compliance with emission standards without regulating voltage or current levels.

Power Line Filter Modules Replacement Considerations

No public substitute part numbers are documented for this specific model.
