Power Line Filter Modules Overview

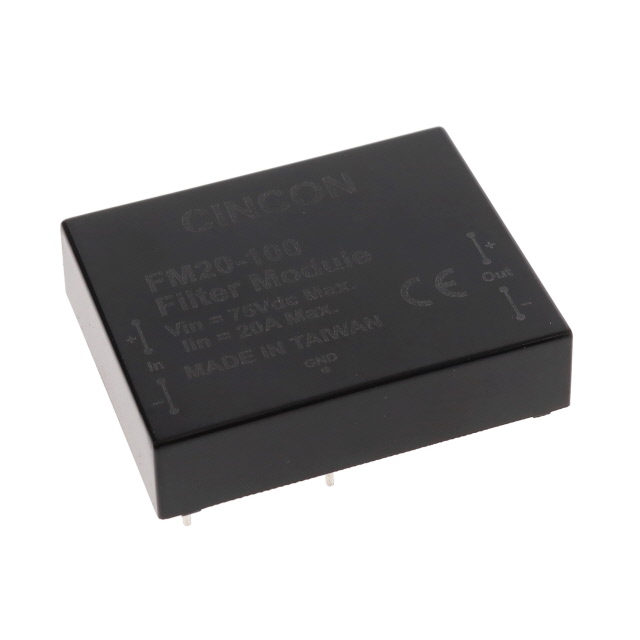

The FM20-100 is a power line filter module manufactured by Cincon Electronics Co. LTD, designed for PCB mounting via through-hole PC pins. It supports a maximum input voltage of 75VDC and handles a current rating of 20A. The component operates within an ambient temperature range of -40°C to 100°C. It is RoHS compliant and functions as an EMI filter circuit intended for general-purpose applications.

Power Line Filter Modules Feature Summary

• Provides electromagnetic interference filtering for DC power lines
• Supports high current capacity up to 20 amperes
• Features through-hole termination style for printed circuit board integration

Power Line Filter Modules Applications

• General purpose electronic equipment requiring EMI suppression
• DC power line protection in industrial systems
• Embedded systems utilizing low-voltage DC inputs

Power Line Filter Modules Procurement Notes

Verify the specific datasheet version to confirm exact electrical characteristics and mechanical dimensions before integration. Ensure the design accommodates the through-hole mounting requirements and thermal management needs for operation up to 100°C. Confirm RoHS compliance status matches project specifications.

Power Line Filter Modules Selection Notes

Select this module when a robust 20A EMI filter is required for DC inputs not exceeding 75VDC. Consider the wide operating temperature range for harsh environments. Evaluate the physical footprint against available PCB space for through-hole implementation.

Power Line Filter Modules Part Context

This component belongs to the FM20 series of power line filter modules from Cincon. The series offers various current ratings and voltage configurations for DC applications. The FM20-100 specifically addresses higher current demands compared to lower-rated variants in the same family.

Power Line Filter Modules Replacement Considerations

Consult official Cincon documentation for direct cross-references. Verify that any substitute maintains identical current ratings, voltage limits, and mounting styles to ensure compatibility.
