FM30R080P

Power Line Filter Modules Overview

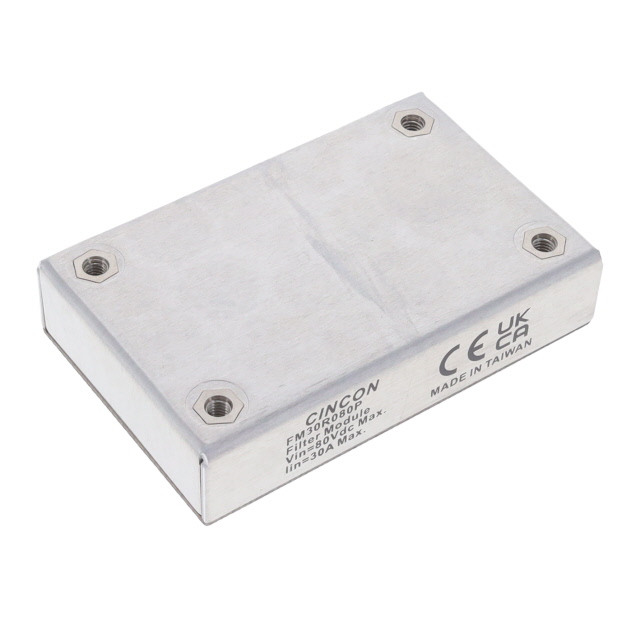

The FM30R080P is a single-stage DC EMC/EMI line filter module manufactured by Cincon Electronics Co. LTD, designed for power conversion and filtering applications. It features a rated current of 30 A and utilizes through-hole PC pin mounting technology. The component operates within an ambient temperature range of -40°C to +100°C. Certified with CE approval, this discrete semiconductor component serves as a critical interface for noise suppression in industrial and commercial electronic systems requiring robust electromagnetic interference mitigation.

Power Line Filter Modules Feature Summary

• Provides effective DC EMC/EMI noise suppression through single-stage filtering architecture
• Supports high continuous current handling capability up to 30 A
• Utilizes durable through-hole PC pin construction for secure board integration
• Operates reliably across extended industrial temperature environments

Power Line Filter Modules Applications

• Power conversion circuit input/output stages
• Industrial equipment electromagnetic interference mitigation
• Commercial electronic system noise filtering

Power Line Filter Modules Procurement Notes

Verify the specific datasheet version and CE certification status directly with Cincon Electronics or authorized distributors before procurement. Confirm that the through-hole footprint dimensions match your PCB layout requirements. Ensure the 30 A current rating aligns with your system's maximum operational load to prevent thermal issues. Validate compliance with relevant regional safety standards applicable to your final product assembly.

Power Line Filter Modules Selection Notes

Select the FM30R080P when a dedicated single-stage EMI filter is required for DC lines carrying up to 30 A. Consider its through-hole mounting style if mechanical stability is prioritized over surface area constraints. Evaluate the -40°C to +100°C operating range against your environmental conditions. This component is suitable for applications needing certified noise reduction without complex multi-stage filtering solutions.

Power Line Filter Modules Part Context

The FM30R080P belongs to Cincon's discrete semiconductor component portfolio, specifically engineered for power integrity management. Unlike their AC-DC power supply modules, this part functions strictly as a passive filtering element. It addresses common mode and differential mode noise in DC circuits, complementing active power conversion components within larger electronic assemblies.

Power Line Filter Modules Replacement Considerations

No public confirmed substitute part numbers are available for the FM30R080P. Engineers must design around this specific component or consult Cincon for equivalent recommendations based on updated product lines.
