FM51129

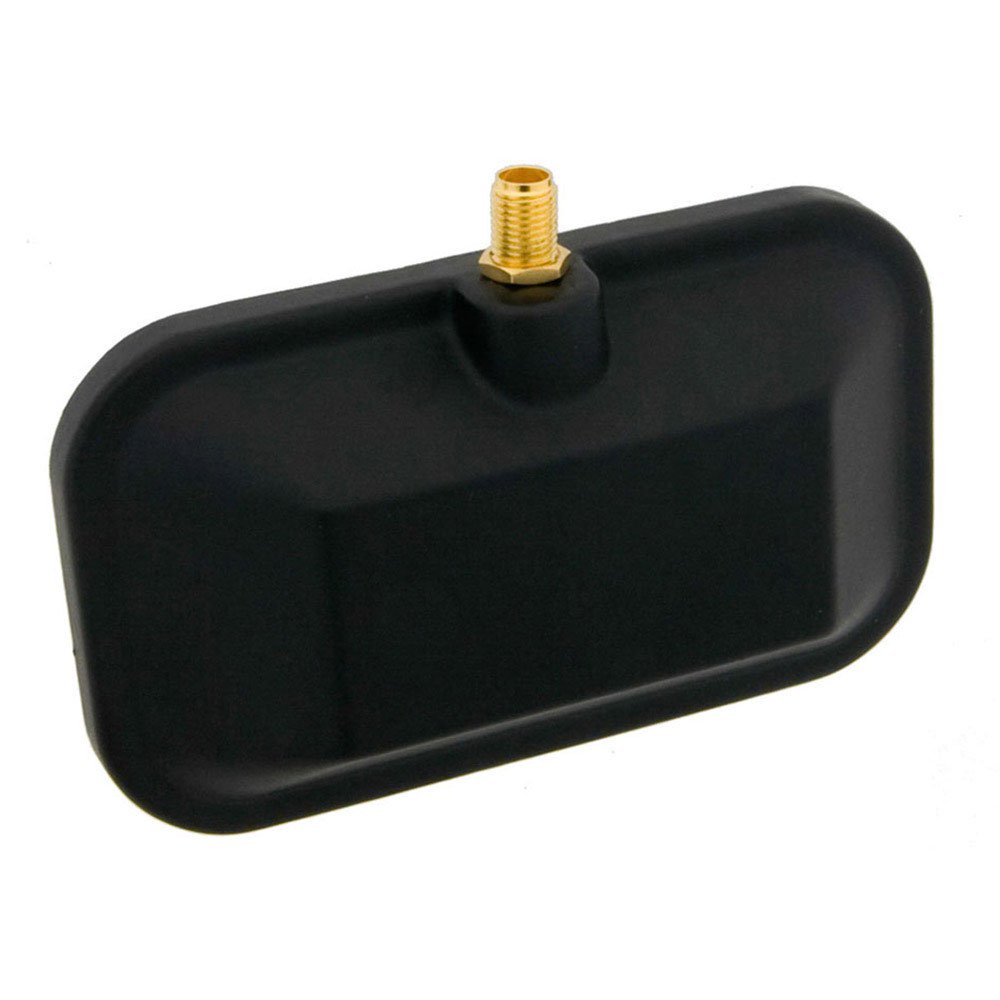

FM51129 is listed in the Antennas RF range at ChipApex. The manufacturer field lists Fairview Microwave. Its product description is ANTENNA SMA JACK 4.4 MHZ-6.4 GHZ. Review the specifications below when checking this part for your BOM.

Antennas RF specifications for FM51129

• Description：ANTENNA SMA JACK 4.4 MHZ-6.4 GHZ
• Series：-
• Mfr：Fairview Microwave
• Package：Bag
• RF Family/Standard：Cellular, WiFi
• Frequency Group：SHF (f > 4GHz)
• Frequency (Center/Band)：5.4GHz
• Frequency Range：4.4GHz ~ 6.4GHz
• Antenna Type：Module
• Number of Bands：1
• VSWR：1.5
• Return Loss：-
• Gain：9dBi
• Features：Cable - 305mm, Cable - 1.524m, Cable - 3.048m, Cable - 7.62m
• Termination：SMA Female
• Ingress Protection：-
• Grade：-
• Qualification：-
• Mounting Type：Connector Mount
• Height (Max)：0.800" (20.32mm)
• Applications：5G, Wi-Fi, WLAN
• Power - Max：50 W

Antennas RF datasheet and documents for FM51129
