FMAC-0934-3610

Power Line Filter Modules Overview

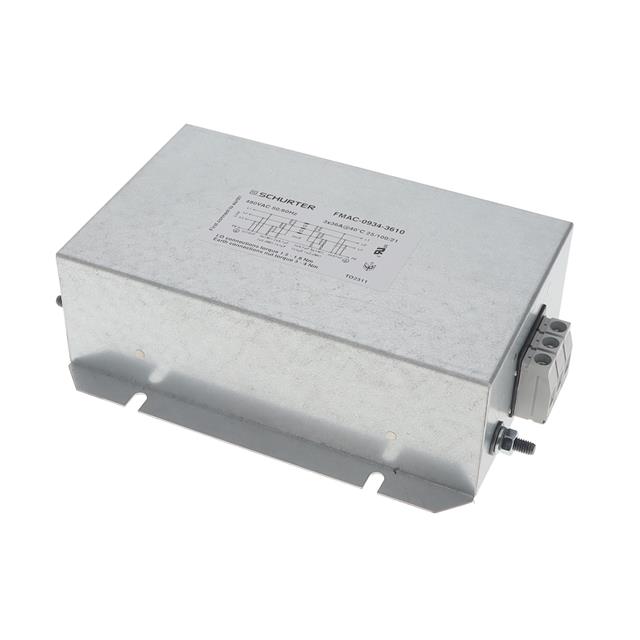

The Schurter FMAC-0934-3610 is a three-phase, single-stage RFI power line filter designed for chassis mounting. It supports rated voltages of 480 VAC and 520 VAC with a continuous current rating of 36 A at operating frequencies of 50 Hz and 60 Hz. The unit features screw termination and exhibits a leakage current range of 0 to 15 mA. Certified under UL, VDE, and IEC/EN standards, it operates within a temperature range of -25°C to 100°C. The component weighs 3.32 kg and belongs to the FMAC series.

Power Line Filter Modules Feature Summary

• Provides electromagnetic interference suppression for three-phase power systems
• Engineered for secure chassis mounting using screw terminals
• Complies with international safety and EMC certification requirements

Power Line Filter Modules Applications

• Industrial machinery power conditioning
• Three-phase motor drive input stages
• Commercial building electrical distribution systems

Power Line Filter Modules Procurement Notes

Verify that the specific application voltage does not exceed the 520 VAC maximum rating. Confirm that the load current remains within the 36 A continuous limit to ensure thermal stability. Check that the installation environment allows for the required chassis mounting space and screw terminal access. Ensure compliance with local facility grounding requirements to maintain effective filtering performance.

Power Line Filter Modules Selection Notes

Select this model when a robust, high-current three-phase filter is required for heavy industrial loads. The chassis mount style suits panel integration where DIN rail options are insufficient. Verify that the physical dimensions accommodate the enclosure layout. Consider the weight and thermal dissipation characteristics during system design.

Power Line Filter Modules Part Context

This component is part of the Schurter FMAC series, which specializes in three-phase RFI filters. The series offers various current ratings and mounting configurations to address diverse power quality needs in industrial environments. The FMAC-0934-3610 represents a high-capacity option within this lineup.

Power Line Filter Modules Replacement Considerations

Consult official Schurter documentation for verified substitute part numbers. Do not assume cross-compatibility with other manufacturers' filters without validating electrical parameters and mechanical fit.
