FMAC-0934-3612I

Power Line Filter Modules Overview

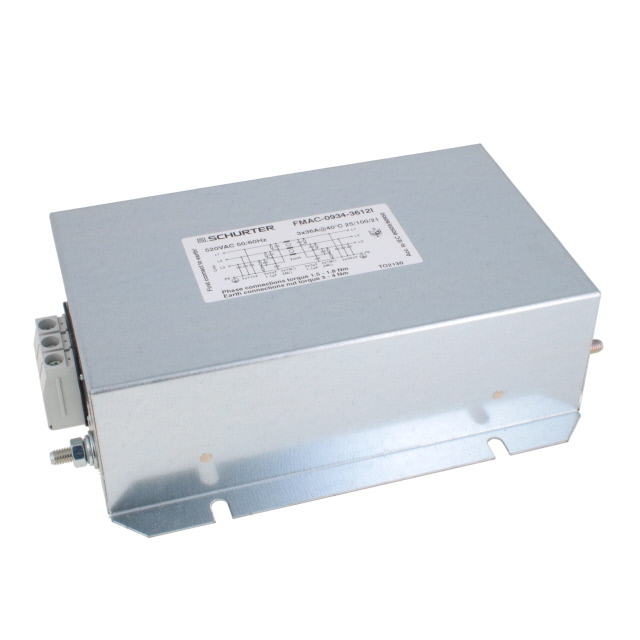

The FMAC-0934-3612I is a three-phase single-stage RFI filter manufactured by Schurter. It supports voltage ratings of 480 VAC and 520 VAC with a current rating of 36 A at 50/60 Hz. The unit features chassis mount installation via screw terminals. Key electrical parameters include a leakage current of 8.6 mA, an operating temperature range from -25°C to 100°C, and a resistance value of 3.32 mΩ. Compliance standards include IEC 60939, UL 1283, and EN 133 200.

Power Line Filter Modules Feature Summary

• Provides electromagnetic interference suppression for three-phase power lines
• Constructed with a galvanized steel enclosure for durability
• Utilizes screw clamp terminal connections for secure wiring

Power Line Filter Modules Applications

• Industrial machinery power conditioning
• Three-phase motor drive systems
• Factory automation equipment

Power Line Filter Modules Procurement Notes

Verify the specific suffix 'I' against official datasheets to confirm terminal configuration and compliance certifications. Ensure the 36 A current rating aligns with system requirements. Confirm chassis mounting dimensions and screw terminal specifications match the design constraints before procurement.

Power Line Filter Modules Selection Notes

Select this component for applications requiring robust three-phase filtering in industrial environments. The 36 A rating suits moderate-to-high power loads. Verify that the 8.6 mA leakage current is acceptable for sensitive downstream electronics. Ensure the chassis mount style fits the available panel space.

Power Line Filter Modules Part Context

This part belongs to the Schurter FMAC series of power line filters. The series offers various configurations for three-phase applications. The FMAC-0934-3612I specifically targets high-current scenarios within the standard voltage ranges. It serves as a critical component for maintaining power quality in noisy electrical environments.

Power Line Filter Modules Replacement Considerations

Cross-reference with FMAC-0934-3610 for similar performance characteristics. Verify that substitute parts maintain the same 36 A rating and 480/520 VAC compatibility. Ensure mechanical mounting interfaces are identical to avoid redesign.
