FMAC-0974-K152I

Power Line Filter Modules Overview

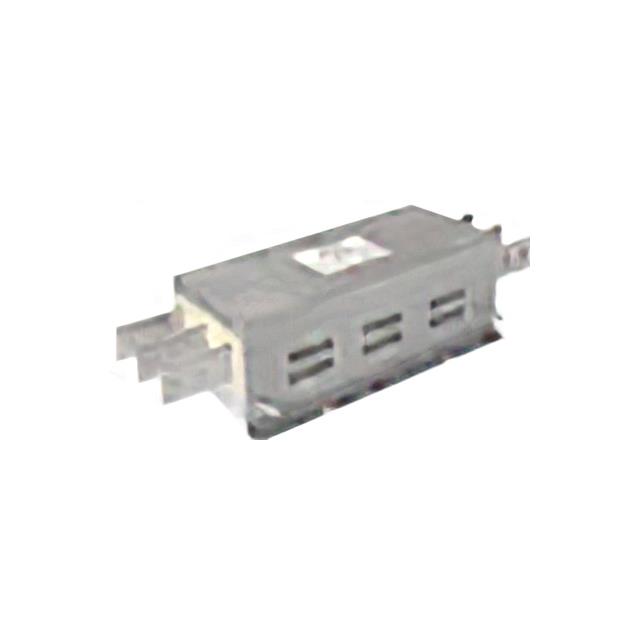

The FMAC-0974-K152I is a three-phase single-stage EMI/EMC line filter manufactured by Schurter Inc. It features a voltage rating of 480V or 520V AC and supports a current capacity of 1.1 kA (1100 A). The unit operates at frequencies of 50Hz or 60Hz with a leakage current of 9.5 mA. Designed for chassis mounting, it utilizes terminal post connections to ensure effective noise suppression in high-power industrial environments.

Power Line Filter Modules Feature Summary

• Provides single-stage electromagnetic interference suppression for three-phase power systems
• Engineered for high-current applications up to 1.1 kA
• Supports dual voltage ratings of 480V and 520V AC
• Utilizes robust terminal post connection method

Power Line Filter Modules Applications

• Industrial motor drive systems
• High-power manufacturing equipment
• Three-phase power distribution networks

Power Line Filter Modules Procurement Notes

Verify the specific voltage requirement (480V vs 520V) and confirm the 1.1 kA current rating matches the load profile. Ensure the chassis mounting style and terminal post interface are compatible with the existing panel design. Cross-reference the datasheet for precise attenuation characteristics and thermal derating curves before finalizing the order.

Power Line Filter Modules Selection Notes

Select this component when high current handling is required alongside standard single-stage filtering performance. The 1.1 kA rating distinguishes it from lower-capacity models in the FMAC series. Verify that the physical dimensions and terminal type fit the available space and wiring constraints within the enclosure.

Power Line Filter Modules Part Context

This model belongs to the Schurter FMAC series of line filters, which are designed for EMC compliance in demanding electrical environments. The series offers various configurations for different current and voltage requirements, providing reliable noise reduction for sensitive electronic loads connected to three-phase power sources.

Power Line Filter Modules Replacement Considerations

Direct substitutes must match the 1.1 kA current rating, 520V AC voltage, and three-phase configuration. Verify that alternative components offer comparable attenuation levels and physical compatibility for chassis mounting with terminal posts.
