FMAC-0A40-2513

Power Line Filter Modules Overview

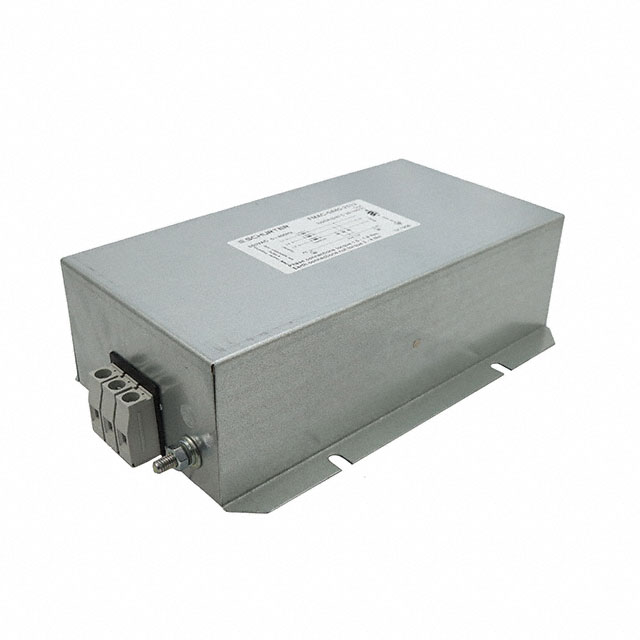

The FMAC-0A40-2513 is a three-phase EMC/EMI line filter module manufactured by Schurter Inc. Designed for output applications in frequency inverters, it supports a rated current of 25 A and operates at voltages up to 550 V AC. The unit utilizes chassis mounting with screw termination for secure installation. It complies with UL and VDE standards as well as IEC/EN regulations, ensuring suitability for industrial power conditioning environments requiring robust electromagnetic interference suppression.

Power Line Filter Modules Feature Summary

• Engineered specifically for output filtering in three-phase frequency inverter systems
• Provides effective electromagnetic compatibility (EMC) and radio frequency interference (RFI) suppression
• Constructed for durable chassis mounting with reliable screw terminal connections

Power Line Filter Modules Applications

• Output filtering for three-phase frequency inverters
• Industrial power conditioning modules
• Electromagnetic interference suppression in motor drive systems

Power Line Filter Modules Procurement Notes

Verify the specific voltage rating requirements against the 550 V AC specification before procurement. Confirm that the chassis mounting dimensions and screw termination types match the existing panel design. Ensure compliance with local UL, VDE, and IEC/EN standards is required for the intended deployment environment. Cross-reference the part number FMAC-0A40-2513 with official Schurter documentation to confirm availability and lead times through authorized distributors.

Power Line Filter Modules Selection Notes

Select this component when designing three-phase inverter outputs requiring 25 A capacity. It is suitable for applications needing certified EMC/EMI filtering with chassis mount flexibility. Consider the 550 V AC rating for compatibility with standard industrial bus voltages. Verify thermal management needs as it dissipates heat during operation. Compare against other FMAC series models if different current ratings or mounting styles are preferred.

Power Line Filter Modules Part Context

This component belongs to the Schurter FMAC series of power line filters. These modules are widely used in industrial automation and power electronics. The FMAC-0A40-2513 variant focuses on high-current three-phase applications. It complements Schurter's portfolio of EMI solutions for sensitive electronic equipment protection.

Power Line Filter Modules Replacement Considerations

Check for direct substitutes within the FMAC series with matching 25 A ratings. Verify equivalent voltage ratings of 550 V AC. Ensure compatible chassis mounting footprints and screw terminal configurations. Confirm identical certification status including UL, VDE, and IEC/EN approvals.
