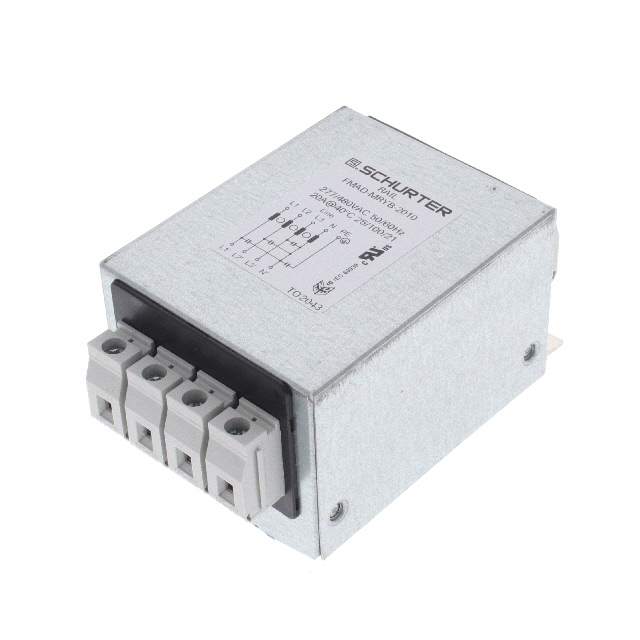

FMAD-MRYB-2010

$48.39

Description：LINE FILTER 277V/480VAC 20A CHAS
Series：FMAD RAIL
Mfr：SCHURTER Inc.
Package：Bulk

SKU:531adf466a8c Category: Power Line Filter Modules Brand: SCHURTER Inc.

Consult the customer manager about the wholesale price.

consultation hotline：86-132-6715-2157

email：[email protected]
Contact the product manager for consultation. One-stop consultation is available.

Do you want a lower wholesale price? Please send us your inquiry and we will reply immediately.

Product introduction

FMAD-MRYB-2010 is listed in the Power Line Filter Modules range at ChipApex. The manufacturer field lists SCHURTER Inc.. Its product description is LINE FILTER 277V/480VAC 20A CHAS. Review the specifications below when checking this part for your BOM.

Power Line Filter Modules specifications for FMAD-MRYB-2010

Description：LINE FILTER 277V/480VAC 20A CHAS
Series：FMAD RAIL
Mfr：SCHURTER Inc.
Package：Bulk
Filter Type：Three Phase (Wye)
Configuration：Single Stage
Voltage - Rated DC：-
Voltage - Rated AC：277V, 480V
Current：20 A
Frequency - Operating：50/60Hz
Applications：General Purpose
Approval Agency：cURus, ENEC, VDE
Operating Temperature：-25°C ~ 100°C
Mounting Type：Chassis Mount
Termination Style：Terminal Block
Inductance：-
Voltage - Rated AC (Phase to Ground/Neutral)：-
Voltage - Rated AC (Phase to Phase)：-

Power Line Filter Modules datasheet and documents for FMAD-MRYB-2010

FMAD-MRYB-2010

Power Line Filter Modules Overview

The FMAD-MRYB-2010 is a three-phase (Wye) EMC/EMI power line filter manufactured by Schurter Inc. It supports a rated current of 20 A and operates at voltages of 277 VAC or 480 VAC with frequencies of 50 Hz and 60 Hz. The device features a single-stage filtering configuration and utilizes terminal block connections for installation. It functions within an ambient temperature range of -25°C to +100°C.

Power Line Filter Modules Feature Summary

Provides electromagnetic interference suppression for three-phase Wye systems
Utilizes a single-stage filtering architecture
Designed for terminal block mounting configurations

Power Line Filter Modules Applications

Industrial machinery noise reduction
Power conditioning systems
Electrical panel integration

Power Line Filter Modules Procurement Notes

Verify the specific voltage rating requirements, as the model supports both 277 VAC and 480 VAC. Confirm that the application environment falls within the specified -25°C to +100°C operating temperature range. Ensure compatibility with the required terminal block connection type for secure electrical interfacing in the target system design.

Power Line Filter Modules Selection Notes

Select this component when a single-stage solution is sufficient for EMI suppression in three-phase Wye networks. It is appropriate for applications requiring 20 A capacity at standard industrial frequencies. Consider the terminal block interface if screw-down wiring is preferred over other mounting styles.

Power Line Filter Modules Part Context

This component belongs to the Schurter power line filter modules category. It is designed for general electromagnetic compatibility improvement in AC power distribution lines. The product serves as a passive filtering element to mitigate conducted emissions from non-linear loads.
